STA-BI-3A-2131A024RC18C1826 (Rend. sz. 111726)

STA BI safety switch, plug connector(s) M23 (RC18), contacts for door position

  • BiState (bistable guard locking)
  • Plug connector M23 (RC18)
  • Contacts for the door position
  • Auxiliary release
STA-BI-3A-2131A024RC18C1826 (Rend. sz. 111726)

Ismertetés

BiState (bistable guard locking)

The device has a function that prevents

  • people from accidentally becoming trapped in the event of a power failure or when the machine is switched off and the safety door is open


  • the activated guard locking is deactivated in the event of a power failure.

Approach direction

Horizontal and vertical

Can be adjusted in 90° steps

Increased overtravel for horizontal approach direction

If increased play is required when the door is closed, an actuator with overtravel is available. With this actuator the door can move slightly in the actuating direction when closed. This is important, for example, if safety doors have a rubber end stop. Using an actuator with overtravel, the continuous pressure from the compressed rubber can be reduced. In this way the load is reduced on the switch head and the door mechanism.

Switching element

2131

Slow-action switching contact

Contacts for guard locking: 2 positively driven contacts + 1 NO contact

Contacts for door monitoring: 1 NC contact

Auxiliary release

The auxiliary release on the front makes it possible to access the machine if there is a malfunction, e.g. a power failure. Unlocking is performed using a tool or a key. The auxiliary release must be protected against misuse (sealing, lacquer).

Accessories required

Actuator is not included.

Switching function
Switching function
Dimension drawing
Dimension drawing

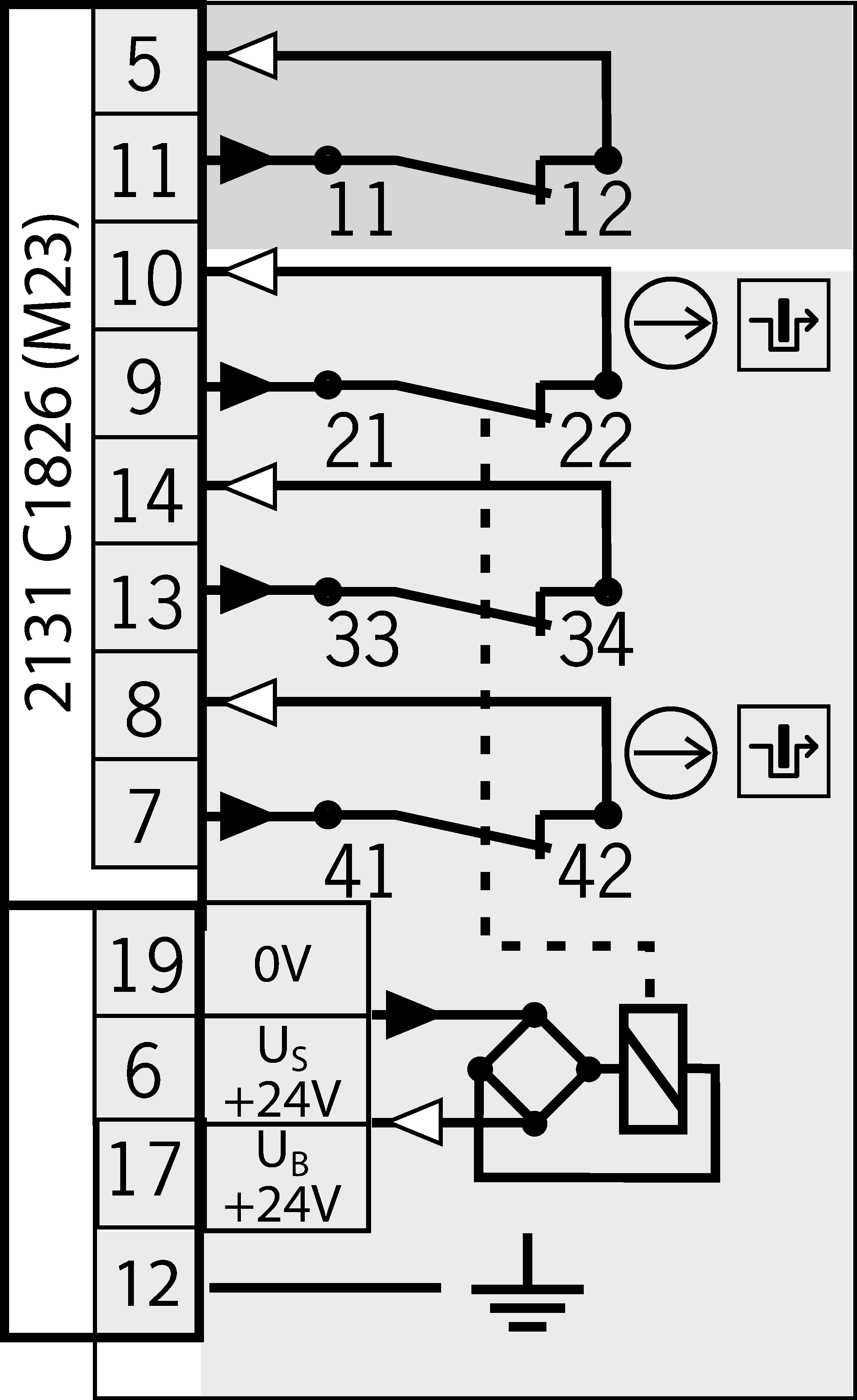

Wiring diagram 2131 C1826 (M23)
Wiring diagram 2131 C1826 (M23)
Electromechanical safety switches in use

Functional drawings

Functional drawings

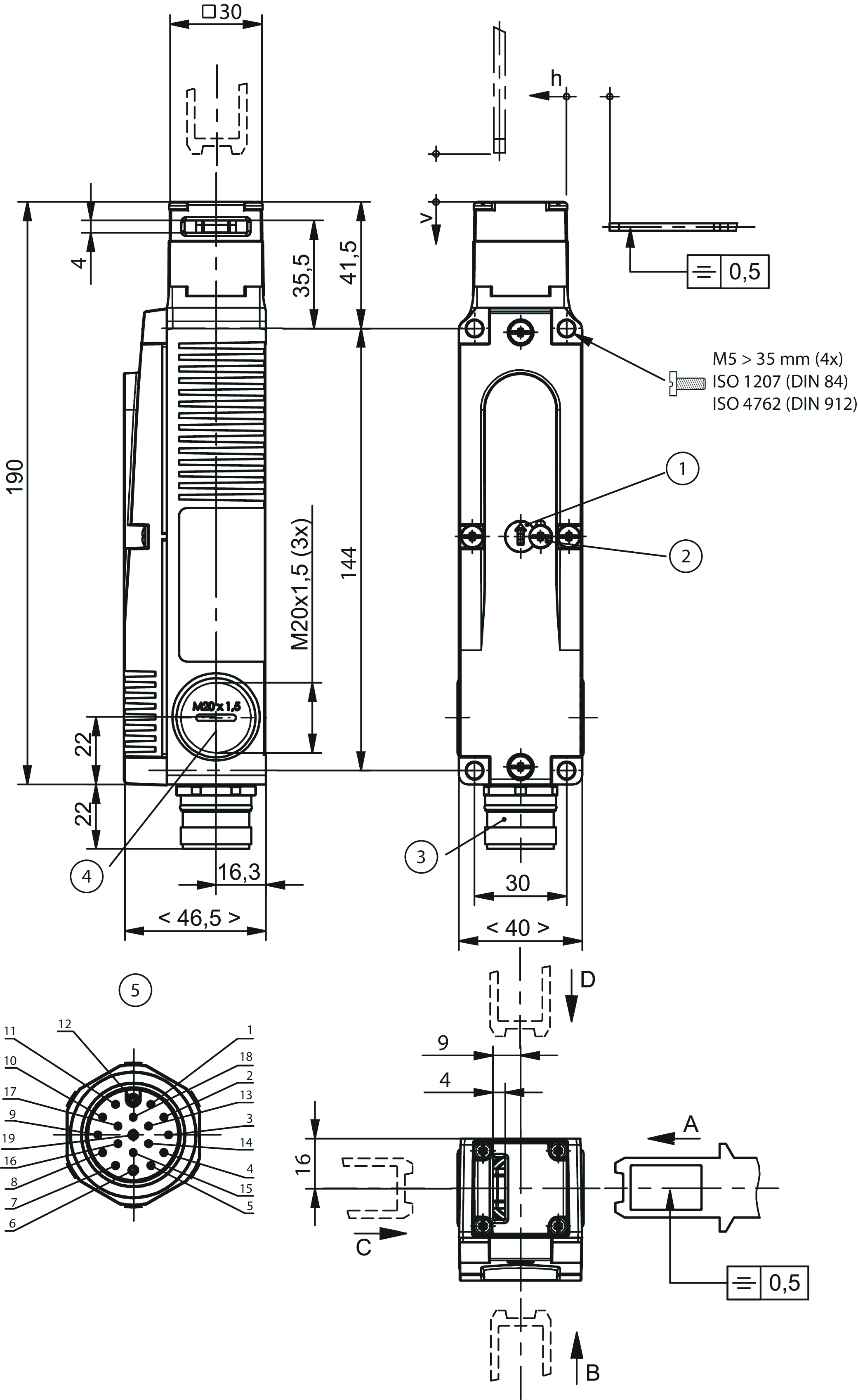

Dimensional drawings

Dimensional drawings
1Auxiliary release
2Locking screw
3Built-in connector
4Screw plug M20x1.5 (2x)
5Built-in connector - RC 18 not aligned

Connection examples

Connection examples

Műszaki adatok

Approvals

CCC2024010305643586_SafetySwitch T_STc_UL_us_E155795_2/4

Electrical connection values

Fuse max. 4 A gG
Power consumption 8 W
Rated insulation voltage Ui 50 V
Rated impulse voltage Uimp 1.5 kV
Utilization category
AC-15 4 A 50 V
DC-13 4 A 24 V
Solenoid operating voltage
DC 24 V -15% ... +10%
Solenoid duty cycle 100 %
Switching voltage
min. at 10 mA 12 V
Switching current
min. at 24 V 1 mA
thermal rated current Ith 4 A

Mechanical values and environment

Anfahrgeschwindigkeit max. 20 m/min
Approach direction A
Connection type
1 x Plug connector RC18 (18-pin + PE)
Number of door position NC contacts 1
Number of guard lock monitoring NO contacts 1
Number of guard lock monitoring positively driven contacts 2
Extraction force 30 N
Actuation frequency max. 1200 1/h
Actuating force 35 N
Installation orientation any
Insertion depth 24.5 mm
Storage temperature -25 ... 70 °C
Mechanical life 1 x 10⁶
Retention force 20 N
Switching principle Slow-action switching contact
Degree of protection IP65
Ambient temperature -20 ... 70 °C
Material
Housing Alloy - die-cast
Contact Silver alloy, gold flashed
Locking force Fmax 3000 N
Locking force FZh 2300 N
Guard locking principle BiState

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

PLMaximum SILPFHDCategoryMission time
Control of guard lockingPL b-4.23x10-6b20 y


B10DMission time
Guard lock monitoring3x10620 y
Important! Values valid at DC-13 100 mA/24V


Miscellaneous

C number
C1826 Special wiring

Tartozékok

Letöltések

Teljes csomag

Minden fontos dokumentum letöltése egyetlen kattintással.

Tartalom:

  • A használati utasítás és a használati utasítás vagy a rövid utasítás kiegészítései
  • A használati utasítást kiegészítő adatlapok
  • A megfelelőségi nyilatkozat
Teljes csomag letöltése (ZIP, 3,1 MB)

Egyedi dokumentumok

Egyéb dokumentumok

Rendelési adatok

Rend. sz. 111726
Cikk neve STA-BI-3A-2131A024RC18C1826
Súly 0,719kg
Vámtarifaszám 85365019000
ECLASS 27-27-26-03 Safety switch with guard control
