CES-I-BP-M-C07-SI-N-170379 (Order no. 170379)

Safety switch CES-I-BP-.-C07-…, RFID, plug connector M12

  • Multicode
  • M12 plug connector, 5-pin; pin 5 not used
  • Direct connection to IP67 field modules
CES-I-BP-M-C07-SI-N-170379 (Order no. 170379)

Description

Approach direction and installation position

Permissible installation position

Multicode evaluation

It is checked whether the actuator is of a type that can be detected by the system (multicode evaluation). The system possesses a low coding level. Every suitable actuator is detected by the switch.

Safety characteristics

Due to two redundantly designed safety outputs (semiconductor outputs) with internal monitoring, the device is suitable for:

  • Category 4 /PL e according to EN 13849-1
  • SIL 3 according to EN IEC 62061

The OSSD outputs used check their function for short circuits using test pulses.

LED indicator

STATE

Status LED

DIA

Diagnostics LED

Terminal assignment

Plug connector (view of connection side)PinDesignationFunctionConnecting cable conductor coloring

1UBElectronics operating voltage, 24 V DCBN
2FO1ASafety output, channel AWH
30 VGround 0 V DCBU
4FO1BSafety output, channel BBK
5-n.c.GY

Plug connector aligned C07

The following applies to the device installation position shown: cable outlet C (left), cable outlet A (right).

Scope of delivery

  • Caps for the mounting holes

Accessories required

Actuator is not included.

Dimension drawing
Dimension drawing

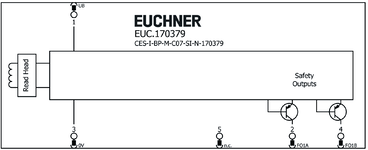

Wiring diagram
Wiring diagram

Dimensional drawings

Dimensional drawings
1LEDs
2Active face
3With the installation orientation shown: cable outlet on left or right

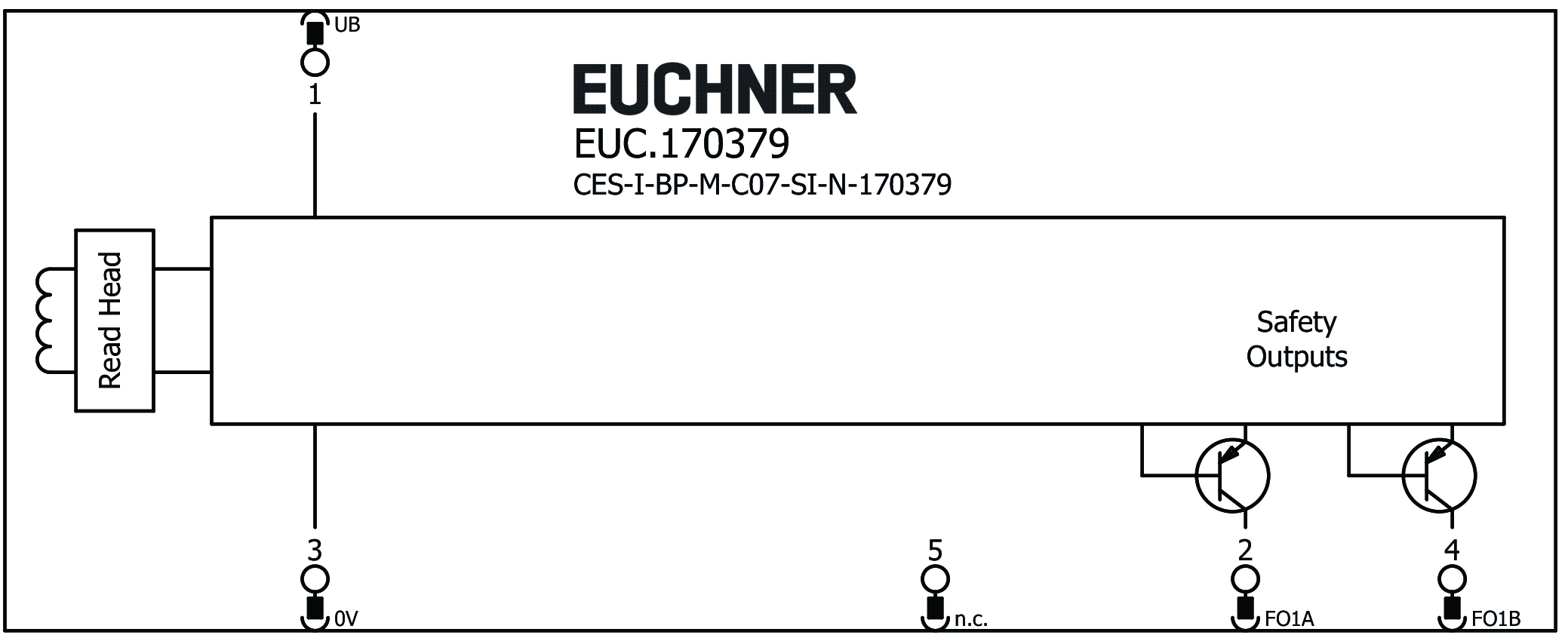

Connection examples

Connection examples

Technical data

Approvals

c_UL_us_E346349_1/1FCC_2AJ58-12_

Workspace

Repeat accuracy R
according to EN 60947-5-2 10 %

Electrical connection values

Fuse
external (operating voltage) 0.25 ... 8 A
rated conditional short-circuit current 100 A
Rated insulation voltage Ui 75 V
Rated impulse voltage Uimp 1.5 kV
Operating voltage DC
UB 24 V DC -15% ... +15% regulated, residual ripple<5%, PELV (-15% ... +10%, at ambient temperature +50 °C)
Turn-on time
Safety outputs max. 100 ms
EMC protection requirements Acc. to EN IEC 60947-5-3
Risk time according to EN 60947-5-3 max. 125 ms
Safety class III
Current consumption 40 mA
Degree of contamination (external, according to EN 60947-1) 3
Monitoring output OD/C
Output type p-switching, short circuit-proof
Output voltage UB-1.5 ... UB V DC
Switching current 1 ... 10 mA
Safety outputs FO1A/FO1B
Output type Semiconductor outputs, p-switching, short circuit-proof
Output voltage
HIGH U(FO1A) / U(FO1B) UB-1.5V ... UB V DC (Values at a switching current of 50 mA without taking into account the cable lengths.)
LOW U(FO1A) / U(FO1B) 0 ... 1 V DC
Output current 1 ... 25 mA (1 ... 55 mA, at ambient temperature 50 °C)
Discrepancy time max. 10 ms
Utilization category
DC-13 24V 25mA (DC-13 24V 55 mA at +50 °C ambient temperature. Caution: outputs must be protected with a free-wheeling diode in case of inductive loads.)
Off-state current Ir max. 0.25 mA
Test pulse duration 0.3 ms (Applies to a load with C<= 30nF and R<= 20kOhm)
Test pulse interval ca 100 ms

Mechanical values and environment

Dimensions 40 x 26.5 x 18
Connection type M12 plug connector, 5-pin
Tightening torque max. 0.8 Nm
Ready delay 5 s
Operating altitude max. 4 000 m
Installation orientation any
Switching frequency max. 1 Hz
Storage temperature -25 ... 70 °C
Mounting distance
between switches min. 50 mm
Mounting type Surface mounting on metal
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65/IP67/IP69/IP69K
Ambient temperature
at UB = 24 V DC -25 ... 55 °C
Material
Housing Plastic, PBT-PC-GF30

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

Mission time
according to EN ISO 13849-1
SIL CL
according to EN 62061:2005/A2:2015

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

PLMaximum SILPFHDCategoryMission time
Monitoring of the guard positionPL e36x10-10420 y


Miscellaneous

Notices for UL approval Operation only with UL Class 2 power supply or equivalent measures
Additional feature Caps included

In combination with actuator CES-A-BDN-06-158210

Switch-on distance
Installation position A 16 mm
Installation position B 11 mm
Installation position D 7 mm
Installation position C 8 mm
Secured switch-off distance sar
in x direction/installation position C max. 21 mm
in x direction/installation position A max. 24 mm
Secured switching distance sao
in x direction/installation position C min. 6 mm
in x direction/installation position A min. 13 mm

In combination with actuator CES-A-BDN-06-158210, CES-A-BTN-C07-156230

Switching hysteresis 1 ... 2 mm

In combination with actuator CES-A-BTN-C07-156230

Switch-on distance
Installation position A + B 13 mm
Installation position C + D 7 mm
Secured switch-off distance sar
in x direction/installation position C + D max. 17 mm
in x direction/installation position A + B max. 20 mm
Secured switching distance sao
in x direction/installation position B min. 9 mm
in x direction/installation position A min. 10 mm
in x direction/installation position D min. 2 mm
in x direction/installation position C min. 3 mm

Accessories

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 7,0 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 170379
Item designation CES-I-BP-M-C07-SI-N-170379
Gross weight 0,055kg
Customs tariff number 85371098
ECLASS 27-27-24-03 Safety-related transponder switch
