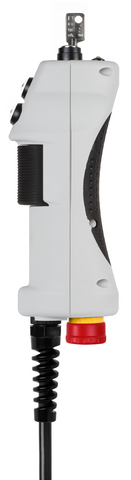

ZSM2104-167826 (Order no. 167826)

3-stage function

The enabling function is active only in the second stage (middle position, pressure point). Releasing or pressing the pushbutton all the way down (panic function) cancels the enabling function. When returning from stage 3 (panic function) to stage 1, the system ensures that the enabling function (stage 2) does not take effect (restart protection).

Pushbuttons

Using these pushbuttons, you can perform additional functions directly from the enabling switch.

Emergency stop

Dual-channel EMERGENCY STOP (red, with pull-and-turn release) on the switch housing, for various wiring concepts.

Lower position, protected by anti-kink strain relief in case of a fall.

LED indicator

The LED indicator (yellow) provides optical coverage directly on the enabling switch.

Vibration signal

The vibration signal is used for tactile feedback of the enabling position.

Key-operated rotary switch

For individual use, e.g., as an operating mode selector. The key can be removed in both positions.
