AnasayfaProductsTransponder-coded safety switches with guard lockingCEM-C60CEM-M2-C60-PZ-SE-165746

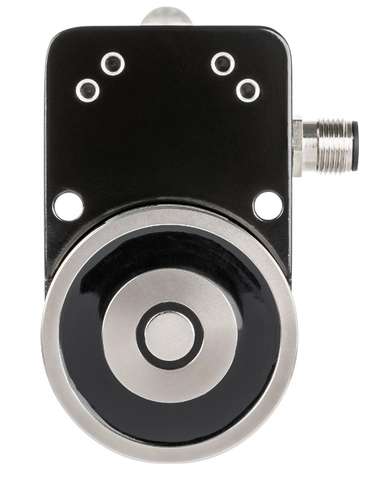

CEM-M2-C60-PZ-SE-165746 (Sip. No. 165746)

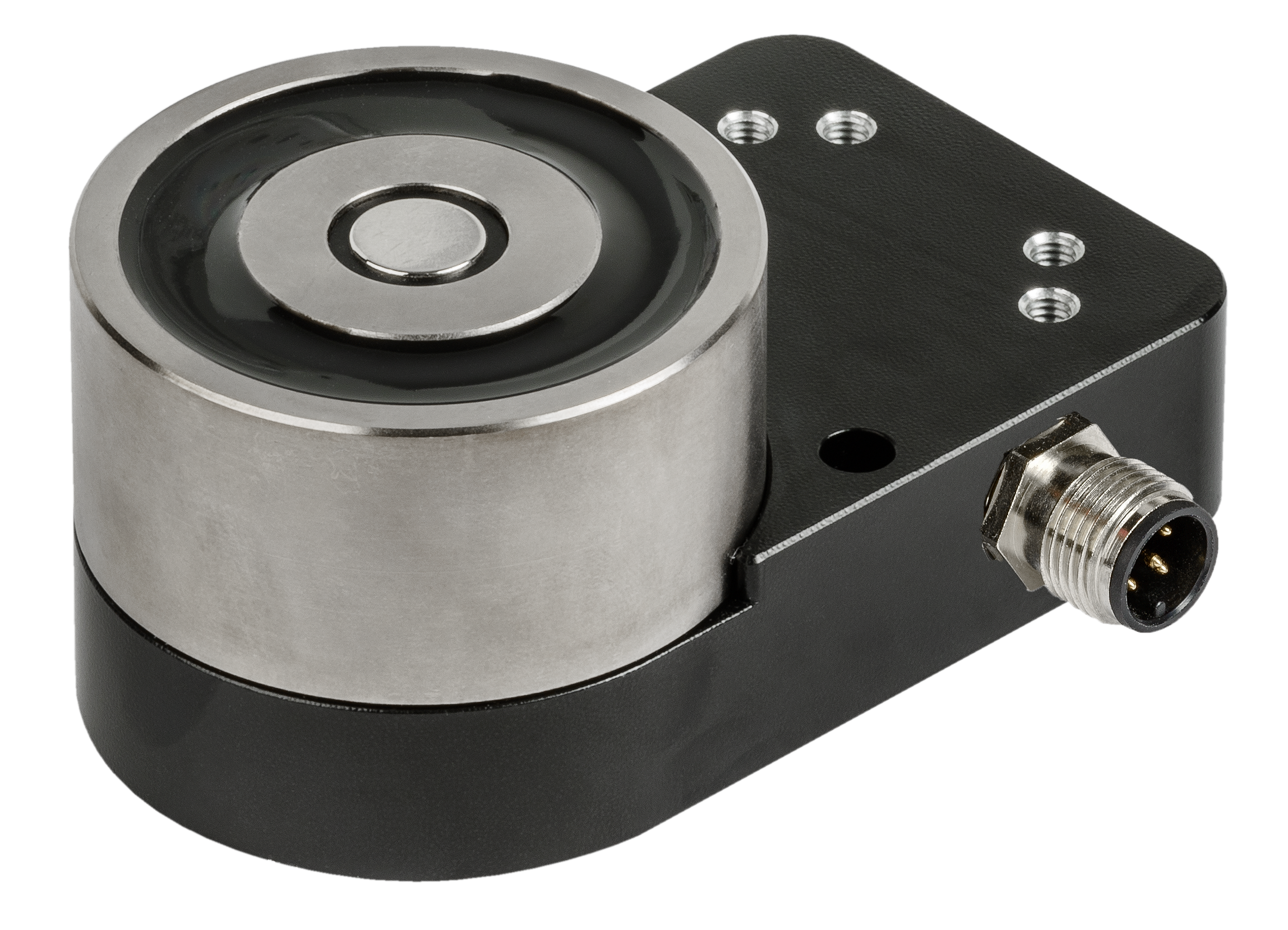

CEM-C60 Electromagnetic Guard Locking for CES-C04 / CES-C07 Safety Switches, M12 Right-Hand Plug Connector(s)

  • Plug connector M12, 5-pin
  • Plug connector(s) on the right
  • Built-in permanent magnet, 30 N adhesive force
CEM-M2-C60-PZ-SE-165746 (Sip. No. 165746)

Açıklama

Approach direction

Horizontal

Guard locking principle

Operating current (power to lock): In a safety guard with guard locking based on the open-circuit current principle, the safety guard remains locked until the power supply to the guard locking solenoid is interrupted. This is also referred to as an electrical guard locking.

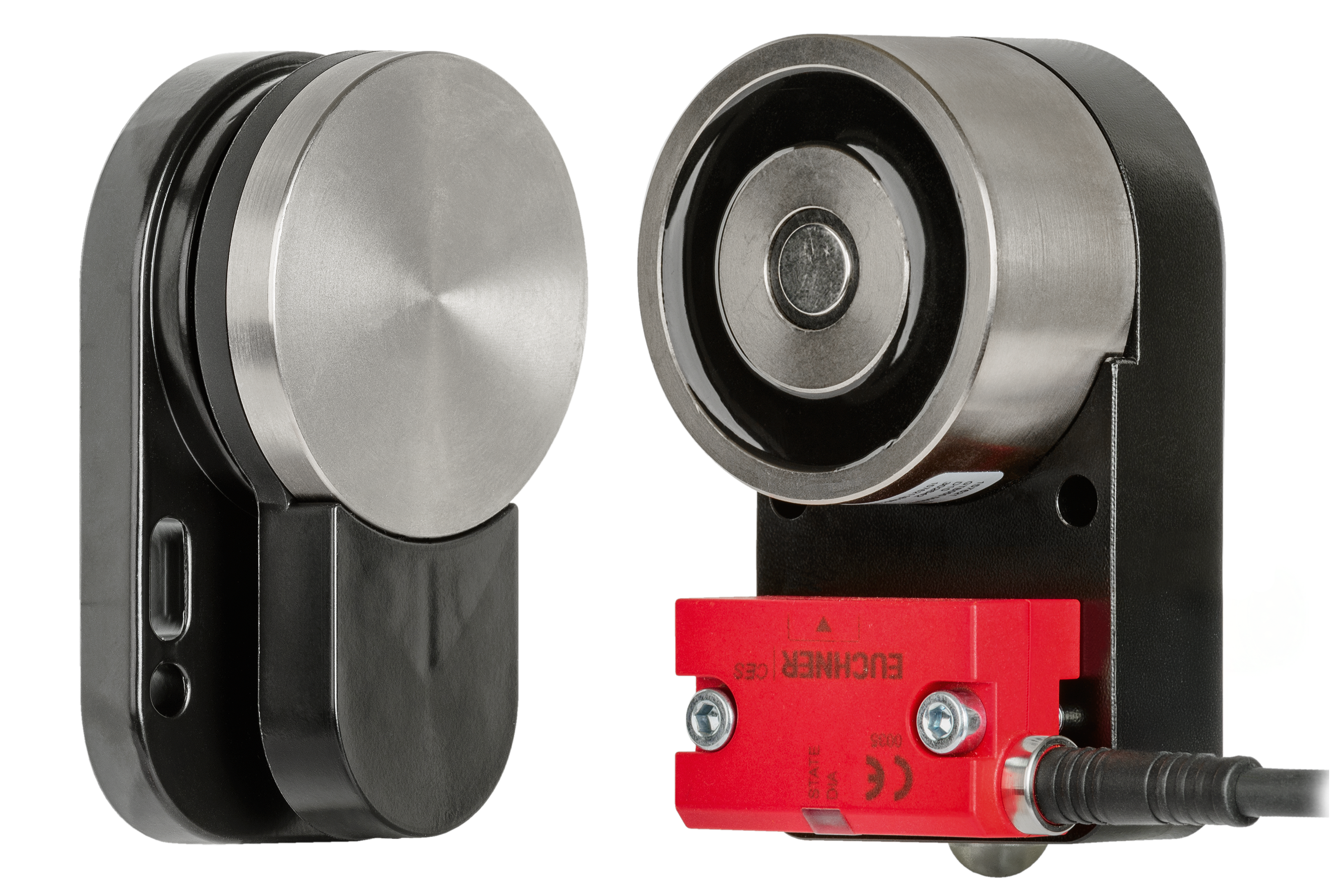

Combinations

Guard locking solenoidSafety switchActuatorApplication

Accessories required

Switches and actuators are not included.

Dimension drawing
Dimension drawing
Wiring diagram
Wiring diagram
Wiring diagram
Wiring diagram

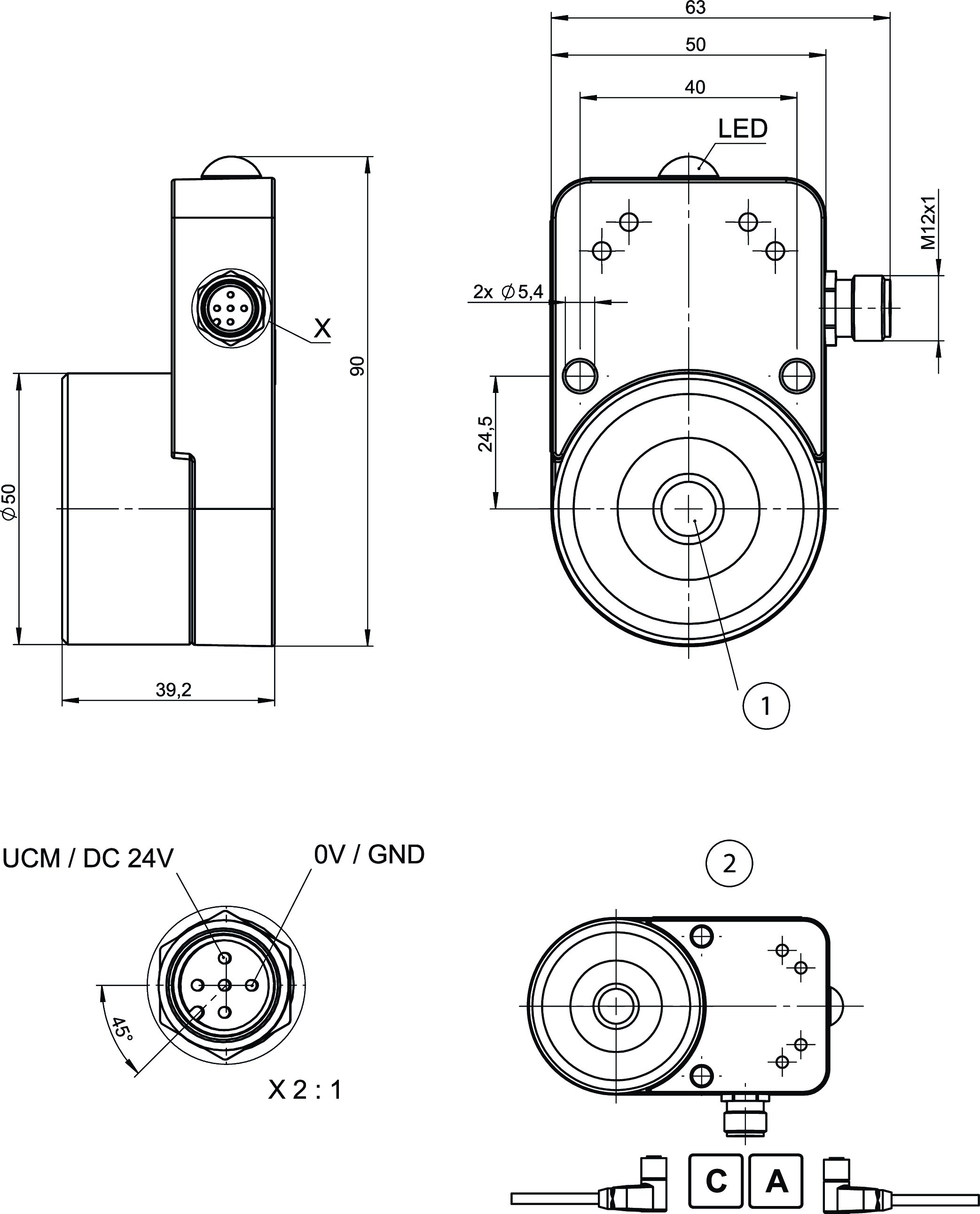

Dimensional drawings

Dimensional drawings
1Permanent magnet
2With the installation orientation shown: cable outlet on left or right

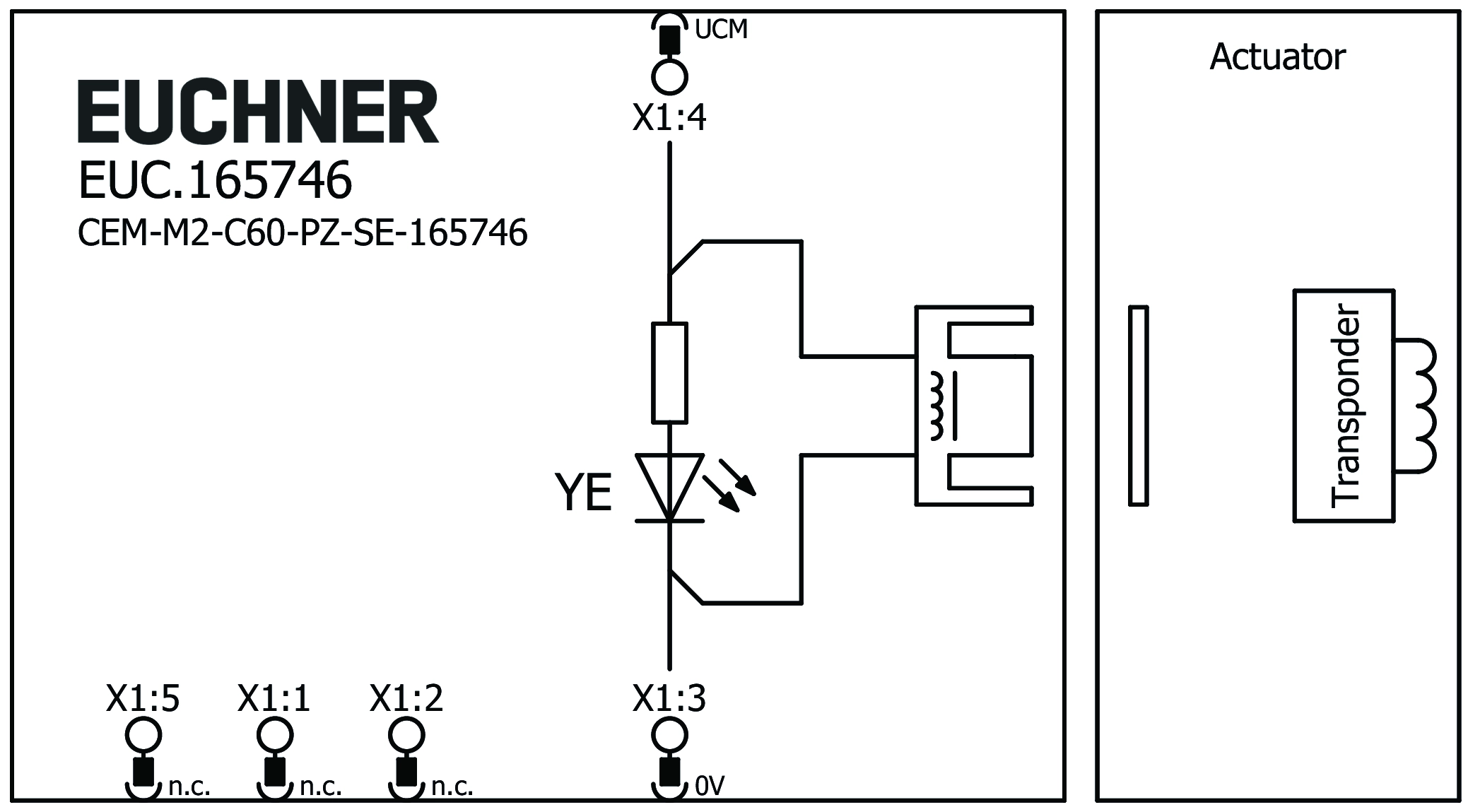

Connection examples

Connection examples

Connection examples

Connection examples

Teknik Veriler

Approvals

c_UL_us_E155795_3/11

Workspace

Center offset
Solenoid 2.5 mm
Transponder detection (typical value at room temperature) 10 mm

Electrical connection values

Power consumption 2.4 W
Operating voltage DC
UCM 24 V DC -15% ... +10%
Solenoid duty cycle 100 %
Current consumption 100 mA

Mechanical values and environment

Connection type M12, 5-pin – RIGHT
Installation orientation any
Adhesive force
by permanent magnet 30 N 0 ... +15
Storage temperature -25 ... 70 °C
Mechanical life
in case of use as door stop, and 1 Joule impact energy 1 x 10⁶
Degree of protection IP65/IP67
Ambient temperature -25 ... 50 °C
Material
Housing Aluminum
Solenoid Steel, nickel plated
Locking force F
(not monitored, in axial direction) at UCM=24 V 650 N
Guard locking principle Open-circuit current principle

In combination with safety switch CES-I-BP-M-C07-SB-160076, CES-I-BP-U-C07-SB-160080, CES-I-BR-U-C07-SA-157920, CES-I-BP-M-C07-SI-162813, CES-I-BP-U-C07-SI-162815, CES-I-BR-M-C07-SA-156233, CES-I-BR-S-C07-SA-165914

Secured switch-off distance sar 17 mm
Secured switching distance sao
with center offset m=0 min. 2 mm

In combination with safety switch CES-I-AP-U-C04-USI-115150, CES-I-AP-U-C04-SK-115324, CES-I-AP-U-C04-USB-116502, CES-I-AP-U-C04-U05-116503, CES-I-AP-U-C04-U10-116504, CES-I-AP-U-C04-U20-116505, CES-I-AP-M-C04-USI-117323, CES-I-AP-M-C04-USB-117324, CES-I-AP-M-C04-SK-117325, CES-I-AP-M-C04-U05-117328, CES-I-AP-M-C04-U10-117329, CES-I-AP-M-C04-U20-117330, CES-I-AR-U-C04-SG-119469, CES-I-AR-U-C04-U05-119470, CES-I-AR-U-C04-U10-119471, CES-I-AR-U-C04-U20-119472, CES-I-AR-U-C04-USA-119473, CES-I-AR-M-C04-SG-119474, CES-I-AR-M-C04-U05-119475, CES-I-AR-M-C04-U10-119476, CES-I-AR-M-C04-U20-119477, CES-I-AR-M-C04-USA-119479, CES-I-AP-M-C04-USI-160832, CES-I-AR-F-C04-SG-161679, CES-I-AP-M-C04-USI-162592

Secured switch-off distance sar 40 mm
Secured switching distance sao
with center offset m=0 min. 5 mm

Aksesuar

İndirme

Komple paket

Tüm önemli belgeleri tek bir tıklama ile indirin.

İçerik:

  • Kullanım talimatları ve kullanım talimatlarına veya kısa talimatlara yapılan tüm eklemeler
  • Kullanım talimatlarını tamamlayan tüm veri sayfaları
  • Uygunluk beyanı
Paketin tamamını indirin (ZIP, 0,9 MB)

Tek Belgeler

Diğer Belgeler

ePlan macros

Sipariş verileri

Sip. No. 165746
Makale adı CEM-M2-C60-PZ-SE-165746
Ağırlık 0,505kg
Gümrük sınıfı 85389099
ECLASS 27-27-24-05 Safety-related transponder switch with guardlocking
