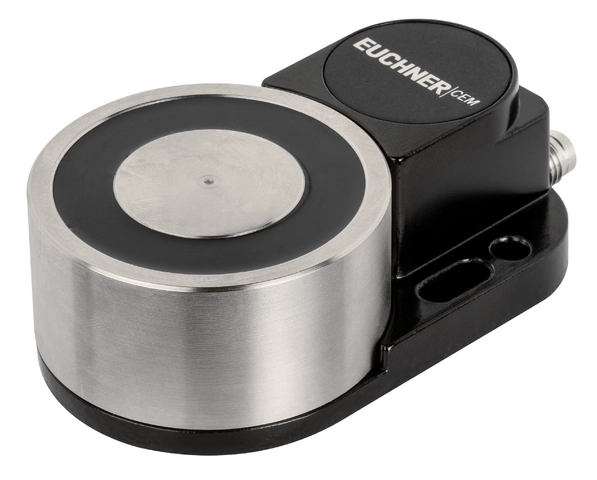

CEM-A-ME05K-S1 (Sip. No. 109755)

Mounting magnet CEM with guard locking

  • Solenoid for locking access doors
  • Locking force 650 N
  • With remanence
  • No guard lock monitoring, no monitoring of the door position
  • Connection using an M8 plug connector
CEM-A-ME05K-S1 (Sip. No. 109755)

Açıklama

Dimension drawing
Dimension drawing

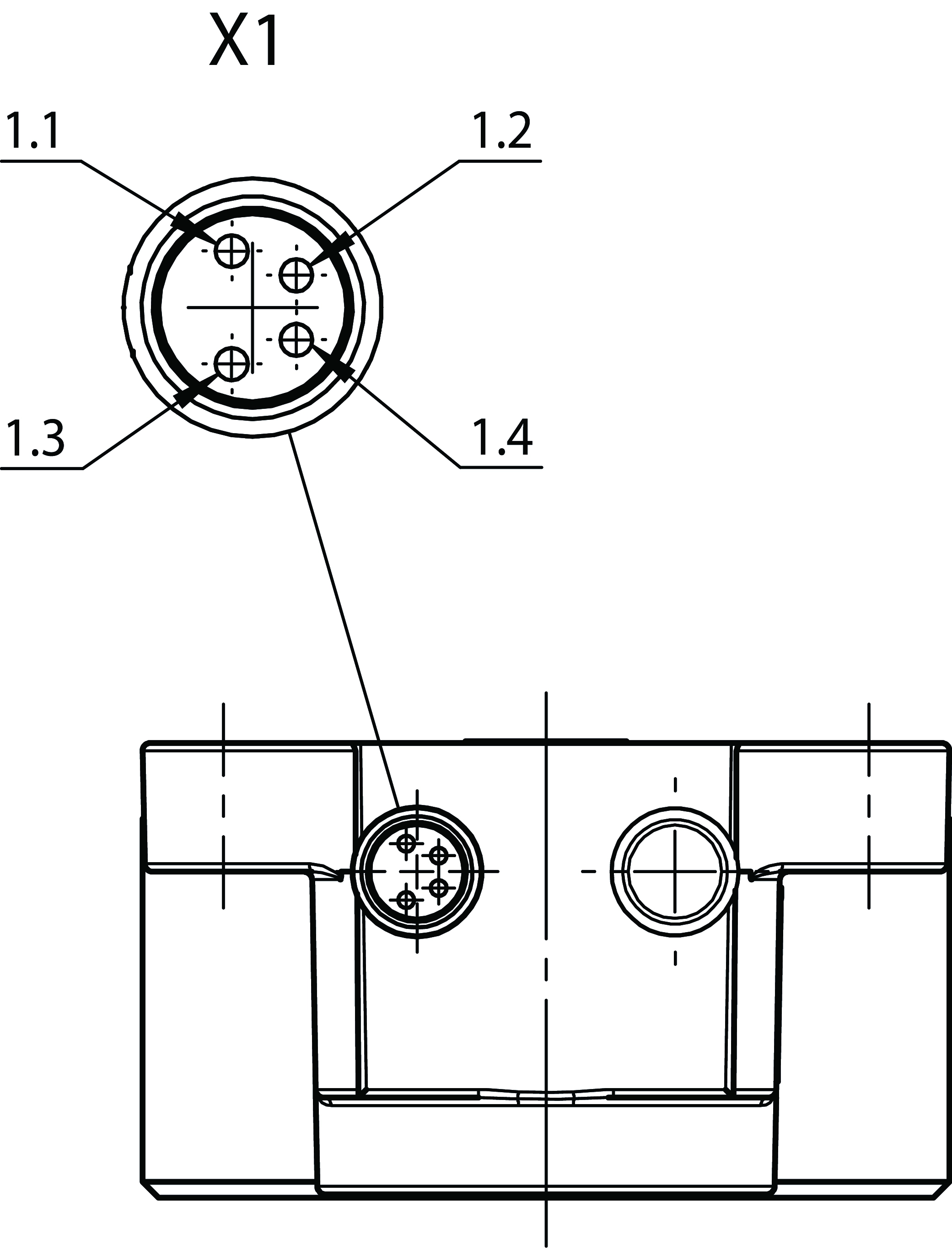

Wiring diagram
Wiring diagram
Wiring diagram
Wiring diagram

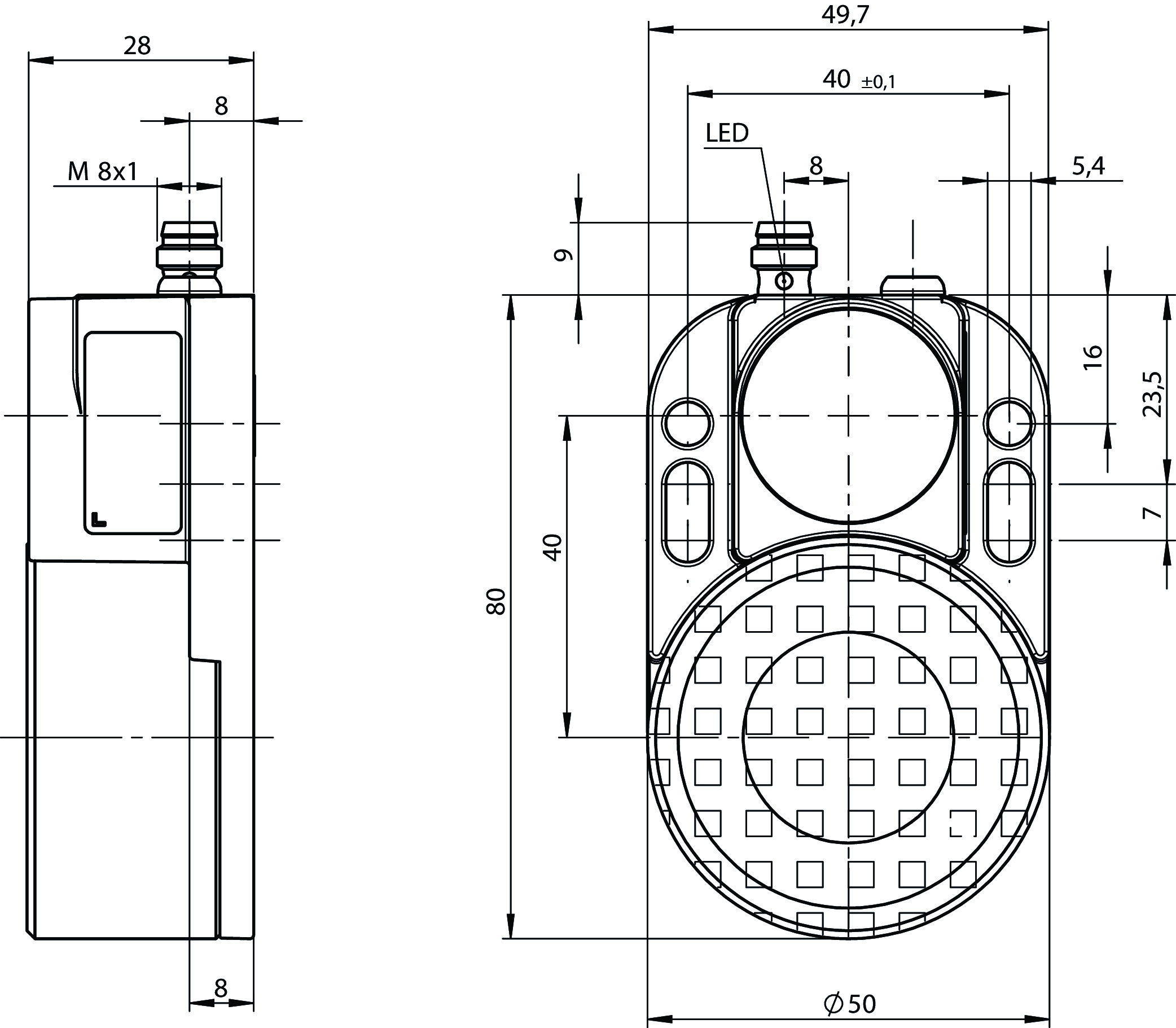

Dimensional drawings

Dimensional drawings

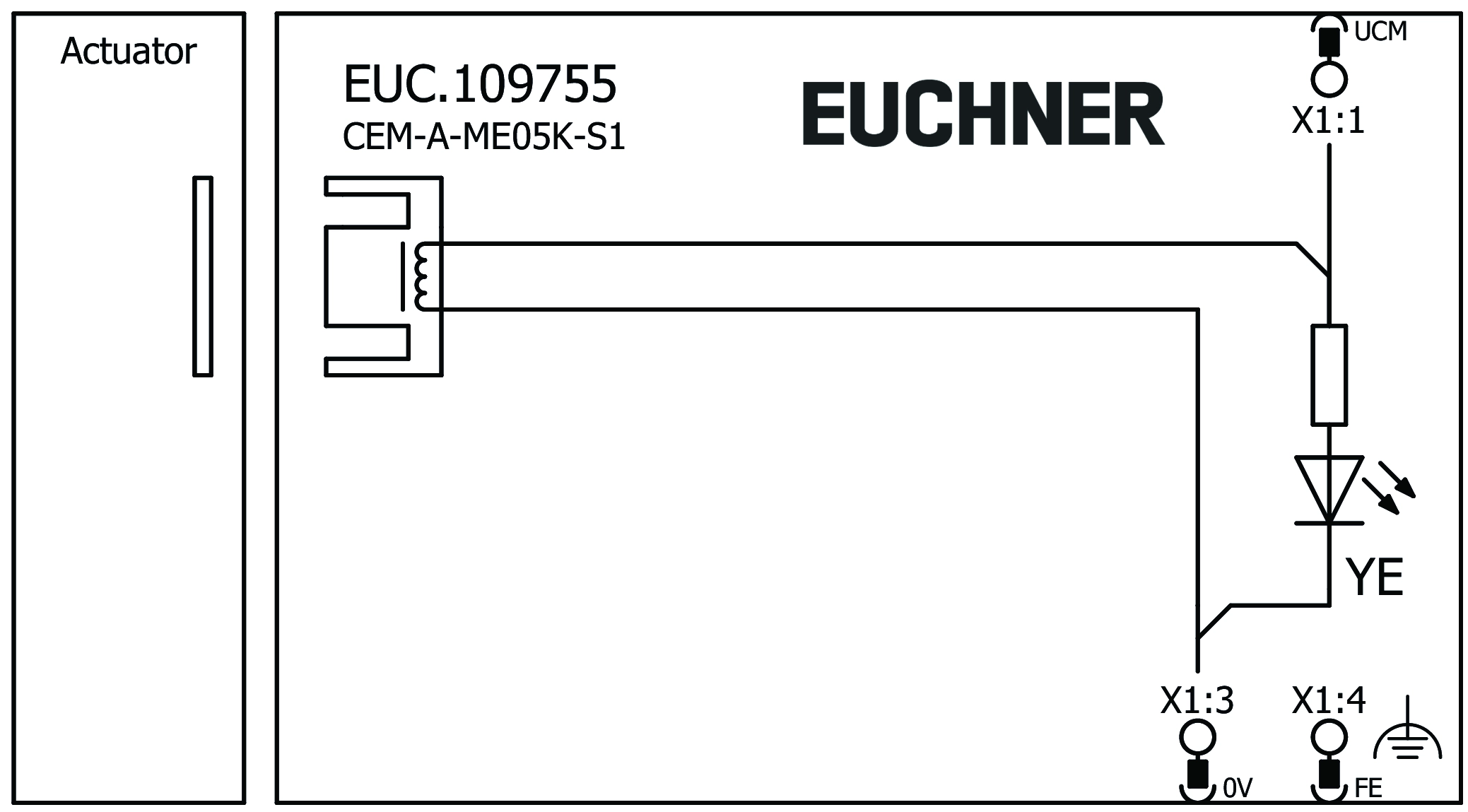

Connection examples

Connection examples

Connection examples

Connection examples

Teknik Veriler

Approvals

c_UL_us_E155795_3/5

Workspace

Center offset 2.5 mm

Electrical connection values

Power consumption 2.5 W
Operating voltage DC
UCM 24 V DC -15% ... +10%
Solenoid duty cycle 100 %
Current consumption
UB 100 mA

Mechanical values and environment

Connection type
X1, solenoid (yellow LED integrated in the plug) Plug connector M8x1, 4-pin, plug (with snap-action/screw terminal)
Installation orientation any
Adhesive force
due to remanence 10 N -25% ... +25%
Storage temperature -25 ... 70 °C
Mechanical life
in case of use as door stop, and 2 Joule impact energy 1 x 10⁶
Degree of protection IP67
Ambient temperature -25 ... 50 °C
Material
Housing Die-cast aluminum
Solenoid Steel, nickel plated
Cover Plastic (PPS)
Locking force F
(not monitored, in axial direction) at UCM=24 V 650 N
Guard locking principle Open-circuit current principle

Aksesuar

İndirme

Komple paket

Tüm önemli belgeleri tek bir tıklama ile indirin.

İçerik:

  • Kullanım talimatları ve kullanım talimatlarına veya kısa talimatlara yapılan tüm eklemeler
  • Kullanım talimatlarını tamamlayan tüm veri sayfaları
  • Uygunluk beyanı
Paketin tamamını indirin (ZIP, 0,6 MB)

Tek Belgeler

Diğer Belgeler

Sipariş verileri

Sip. No. 109755
Makale adı CEM-A-ME05K-S1
Ağırlık 0,419kg
Gümrük sınıfı 85365019000
ECLASS 27-27-24-05 Safety-related transponder switch with guardlocking
