CEM-A-LE05K-S1-10P (Sip. No. 102821)

Read head CEM-A-LE05... with guard locking without guard lock monitoring with remanence

  • Read head with guard locking without guard lock monitoring
  • Locking force 650 N
  • With remanence
  • Connection, CES evaluation unit: Cable 10 m, PUR
  • Connection, solenoid operating voltage: M8 male plug
  • Up to category 4 according to EN ISO 13849-1
CEM-A-LE05K-S1-10P (Sip. No. 102821)

Açıklama

Scope of delivery

  • 2 safety screws M5x16

To be ordered separately:

  • Evaluation unit CES-AZ

  • Actuator CEM-A-BE05

Approach direction

Approach direction

Typical operating distance

Typical operating distance

Note assured release distance sar = 20 mm for internal component failure. Safety outputs are safely switched off.

Dimension drawing
Dimension drawing
Wiring diagram
Wiring diagram
Wiring diagram
Wiring diagram

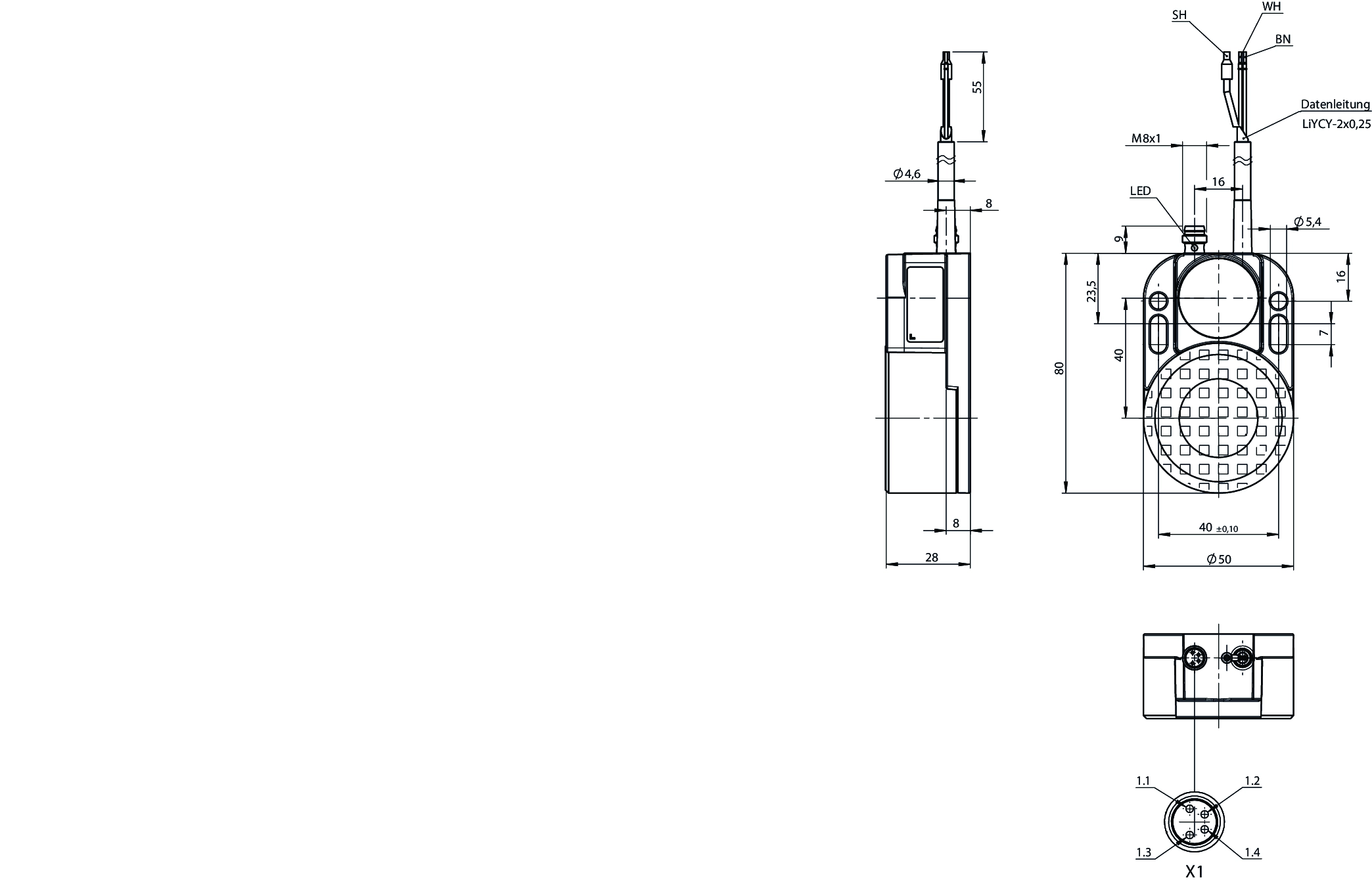

Dimensional drawings

Dimensional drawings

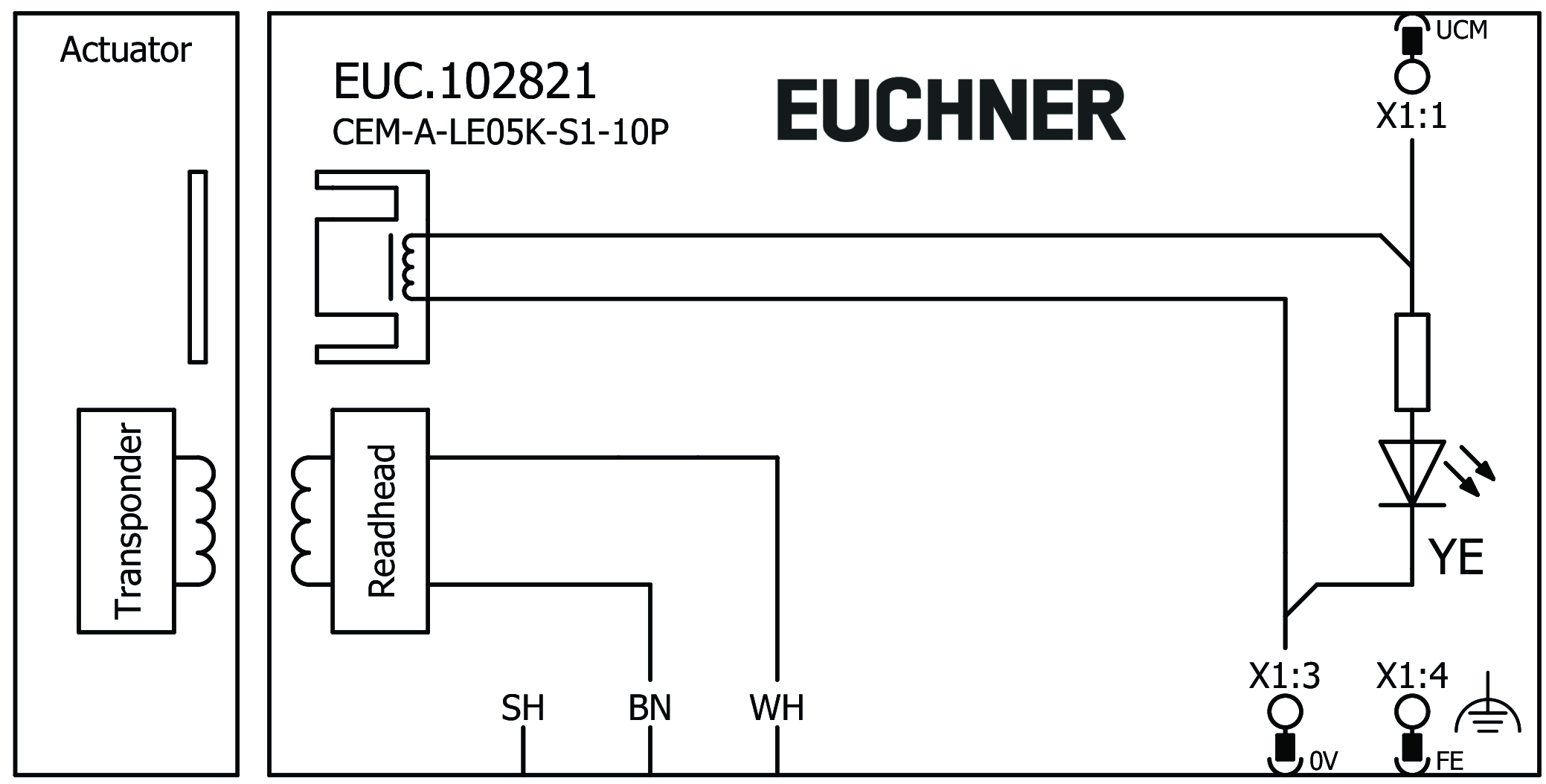

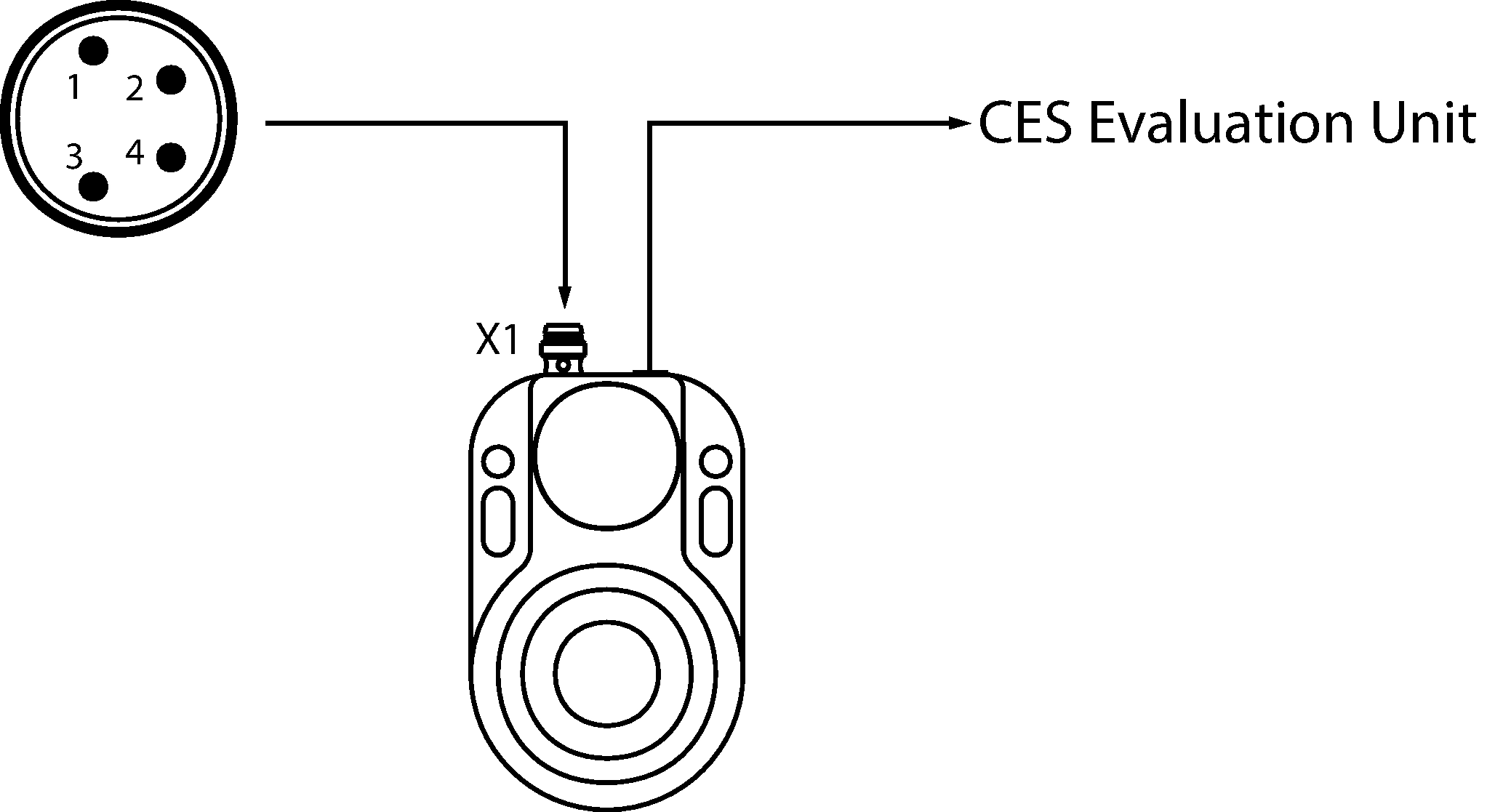

Connection examples

Connection examples

Connection examples

Connection examples

Teknik Veriler

Approvals

c_UL_us_E155795_3/5

Workspace

Secured switch-off distance sar 20 mm
Secured switching distance sao
with center offset m= ±2.5 mm 0 mm
Center offset 2.5 mm
Switching hysteresis
with center offset m=0 0.7 mm

Electrical connection values

Power consumption 2.5 W
Operating voltage DC
UCM 24 V DC -15% ... +10%
Solenoid duty cycle 100 %
Current consumption
UB 100 mA

Mechanical values and environment

Connection type
X1, solenoid (yellow LED integrated in the plug) Plug connector M8x1, 4-pin, plug (with snap-action/screw terminal)
Connecting cable, read head hard-wired encapsulated connecting cable with cable end sleeves, 10 m, PVC
Dynamic bending radius 10x cable diameter
Static bending radius 5x cable diameter
Installation orientation any
Switching frequency
Solenoid max. 1 Hz
Adhesive force
due to remanence 10 N -25% ... +25%
Storage temperature -30 ... 80 °C
Cable length max. 25 m
Mechanical life
in case of use as door stop, and 2 Joule impact energy 1 x 10⁶
Degree of protection IP67
Ambient temperature -25 ... 50 °C
Cable ambient temperature (dynamic) -5 ... 70 °C
Cable ambient temperature (static) -30 ... 80 °C
Material
Housing Die-cast aluminum
Read head Plastic (PPS)
Solenoid Steel, nickel plated
Locking force F
(not monitored, in axial direction) at UCM=24 V 650 N
Guard locking principle Open-circuit current principle

Aksesuar

İndirme

Komple paket

Tüm önemli belgeleri tek bir tıklama ile indirin.

İçerik:

  • Kullanım talimatları ve kullanım talimatlarına veya kısa talimatlara yapılan tüm eklemeler
  • Kullanım talimatlarını tamamlayan tüm veri sayfaları
  • Uygunluk beyanı
Paketin tamamını indirin (ZIP, 1,2 MB)

Tek Belgeler

Diğer Belgeler

ePlan macros

Sipariş verileri

Sip. No. 102821
Makale adı CEM-A-LE05K-S1-10P
Ağırlık 0,777kg
Gümrük sınıfı 85365019000
ECLASS 27-27-24-05 Safety-related transponder switch with guardlocking
