HBL-097339 alt: 072598 (Sip. No. 097339)

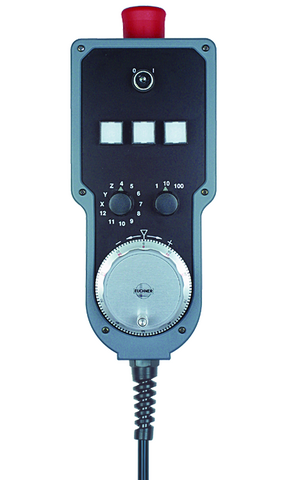

Hand-held pendant station HBL - 097 339, EMERGENCY STOP device, handwheel, pushbuttons, selector switches, enabling switch, key-operated rotary switch

  • Handwheel, 100 pulses
  • Tamper-proof EMERGENCY STOP device according to EN ISO 13850, dual-channel
  • Enabling switch, 3-stage
  • 3 illuminated pushbuttons, can be individually labeled
  • 2 selector switches
  • Key-operated rotary switch
HBL-097339 alt: 072598 (Sip. No. 097339)

Açıklama

Dimension drawing
Dimension drawing
Wiring diagram
Wiring diagram
Hand-held pendant stations and hand wheels

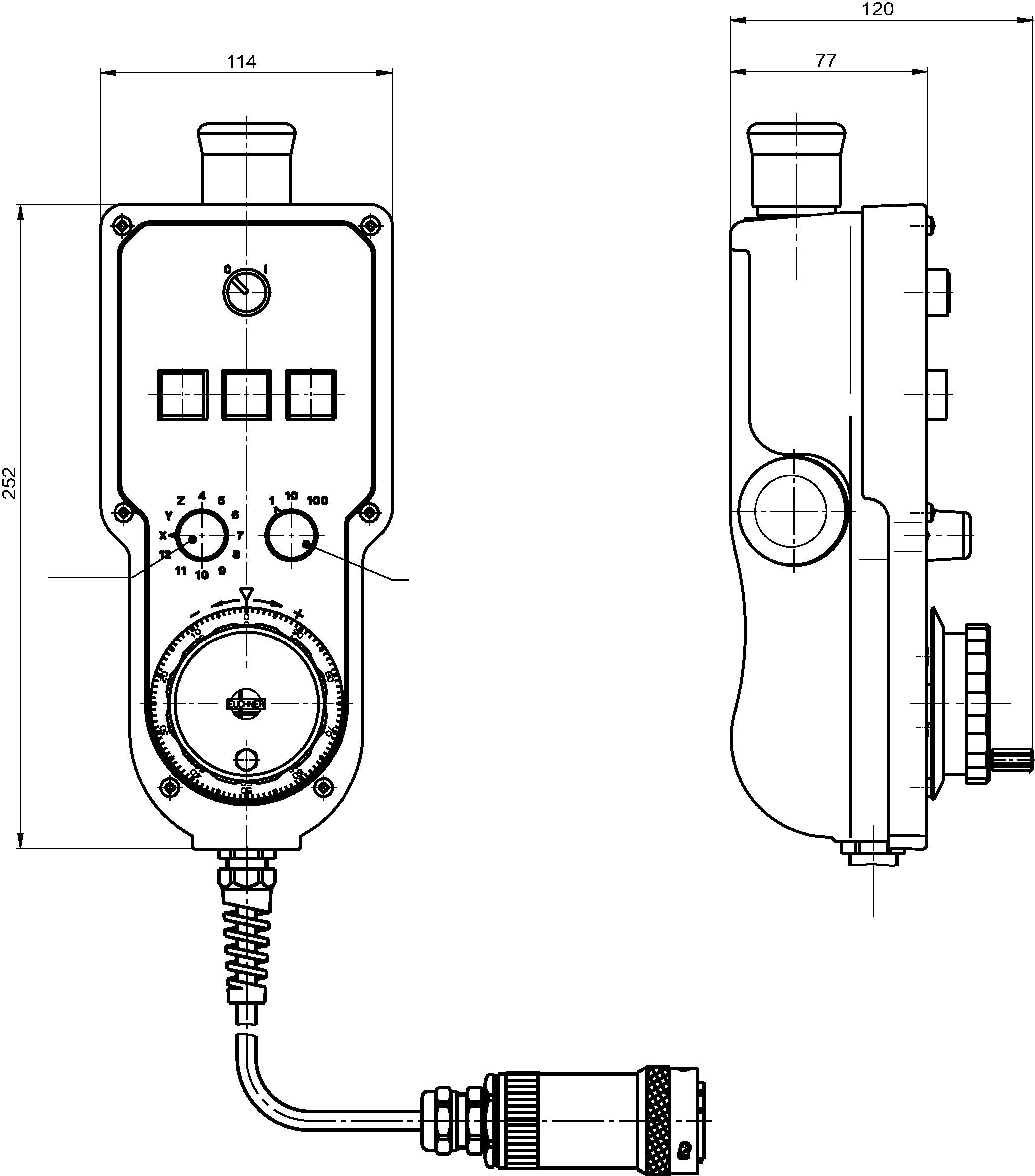

Dimensional drawings

Dimensional drawings

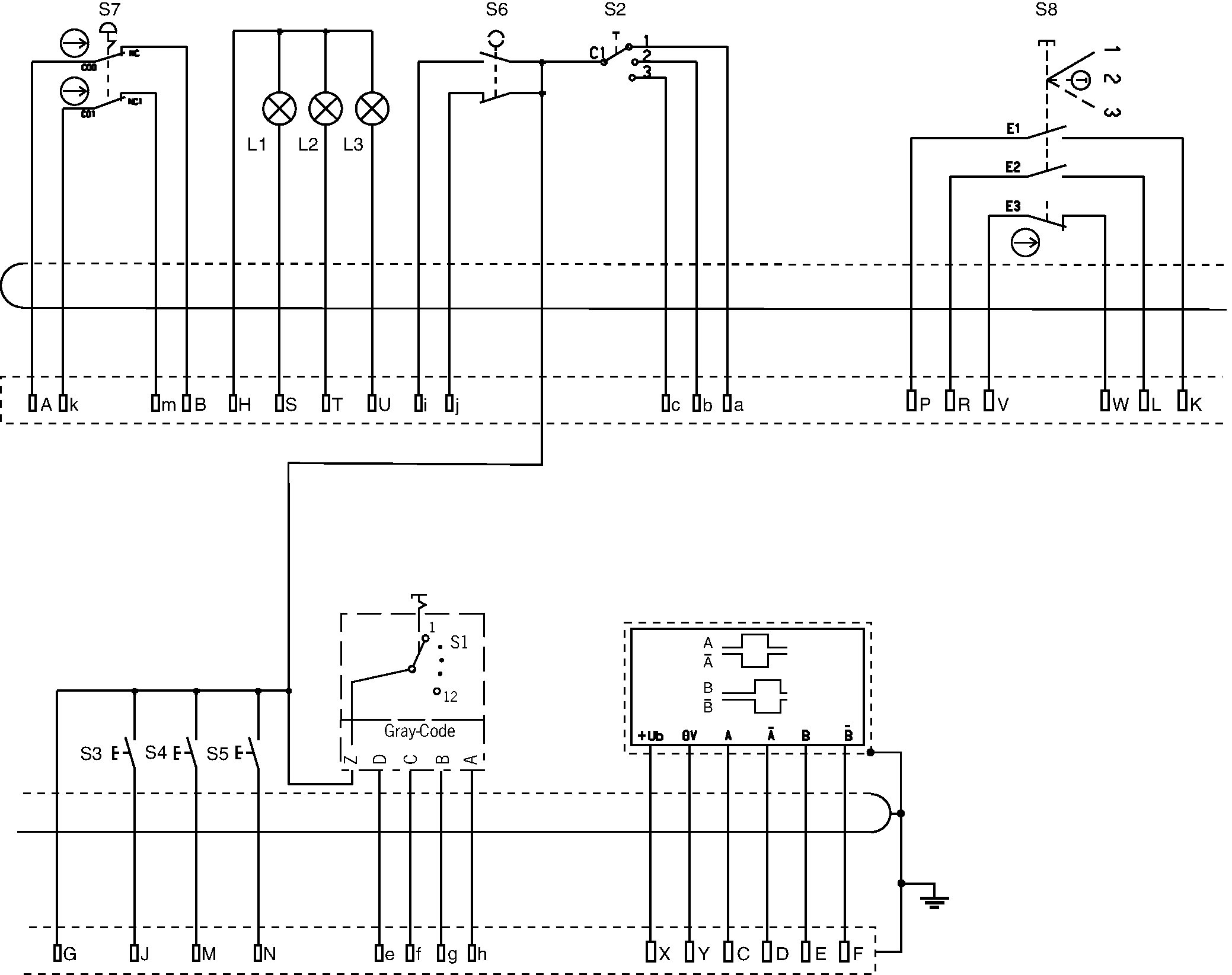

Connection examples

Connection examples

Teknik Veriler

Approvals

c_UL_us_E206093_1/2

Operating and display elements

ItemColorExtrasSwitching elementVersionSlide-in labelNote slide-in labelNumberDesignation1LED
see data sheetsblack knob with arrow disk-12-stage, hex-coded, detent angle 30°Selector switch1
see data sheetsred-yellow-2 pos. driven contactEmergency stop1
see data sheets-with white LED, can be labeled1 NO contact eachPushbutton3
see data sheets---Handwheel1
see data sheets--2 NO contacts + 1 NC contactEnabling switch, 3-stage1
see data sheets-Removal position at 01 NO + 1 NC contactKey-operated rotary switch1
see data sheetsblack knob with arrow disk-3-stage, 1 of 3, detent angle 30°Selector switch1

Electrical connection values

Connecting cable 35x0.14 mm² (screened)
EMC protection requirements
according to CE EN 61000-6-2, EN 61000-6-4
Display/control element
Output type
Handwheel RS422
Operating voltage DC
Handwheel 5 V DC -5% ... +5%
Utilization category
DC-13 Emergency stop 42 V / 1 A
Pulses per revolution
Handwheel 2x100
Switching capacity (VA)
Selector switch hex max. 6 VA
Selector switch 1ofX max. 6 VA
Switching voltage
Pushbutton max. AC/DC 250 V
Selector switch 1ofX max. DC 60 V
Selector switch hex max. DC 60 V
Enabling switch DC 5 ... DC 230 V
Key-operated rotary switch max. AC/DC 42 V
Switching current
Key-operated rotary switch
Selector switch 1ofX max. 0.25 mA
Selector switch hex max. 0.25 mA
Enabling switch max. 3000 mA at DC-13
Pushbutton max. 5000 mA
LED power supply -10% ... 24 ... +10% V DC (AC/DC)

Mechanical values and environment

Connection type Plug connector (35-pin, metal version)
Storage temperature -25 ... 70 °C
Cable length
straight 3.5 m
Atmospheric humidity
Condensation not permissible max. 80 % rH
Shock and vibration resistance according to EN 60068-2-27/-2-6
Degree of protection
according to NEMA 250-12 (in the installed state)
IP65 (in the installed state)
Ambient temperature 0 ... 55 °C
Material Polyamide
Display/control element
Detent positions per revolution
Handwheel 100

Miscellaneous

Color
Housing Blue-gray RAL 7031
Notices for UL approval Operation only with UL Class 2 power supply or equivalent measures

İndirme

Komple paket

Tüm önemli belgeleri tek bir tıklama ile indirin.

İçerik:

  • Kullanım talimatları ve kullanım talimatlarına veya kısa talimatlara yapılan tüm eklemeler
  • Kullanım talimatlarını tamamlayan tüm veri sayfaları
  • Uygunluk beyanı
Paketin tamamını indirin (ZIP, 2,7 MB)

Tek Belgeler

Diğer Belgeler

ePlan macros

Sipariş verileri

Sip. No. 097339
Makale adı HBL-097339 alt: 072598
Ağırlık 2,23kg
Gümrük sınıfı 85371098
ECLASS 11.0 27-33-02-02 Mobile Panel (HMI)
