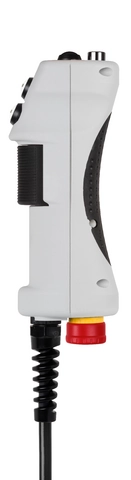

ZSM2204-117128 (Sip. No. 117128)

ZSM, pushbuttons and -, pushbutton, EMERGENCY STOP, LED indicator, vibration alarm, flying lead

  • Pushbuttons and -
  • Pushbutton black
  • Emergency stop
  • two-color LED indicator (green and red)
  • Vibration signal
  • Straight connector, 10 m
  • flying lead
ZSM2204-117128 (Sip. No. 117128)

Açıklama

3-stage function

Enabling function is active only in the second stage (center position, actuating point). If the pushbutton is released or pushed further (panic function), the enabling is removed (dependent on the wiring, see function sequence).

Pushbuttons

Using these pushbuttons, you can perform additional functions directly from the enabling switch.

Emergency stop

Dual-channel EMERGENCY STOP (red, with pull-and-turn release) on the switch housing, for various wiring concepts.

Lower position, protected by anti-kink strain relief in case of a fall.

LED indicator

The two-color LED indicator (green and red) provides optical coverage directly on the enabling switch.

Vibration signal

The vibration signal is used for tactile feedback of the enabling position.

Dimension drawing
Dimension drawing
Switching function
Switching function

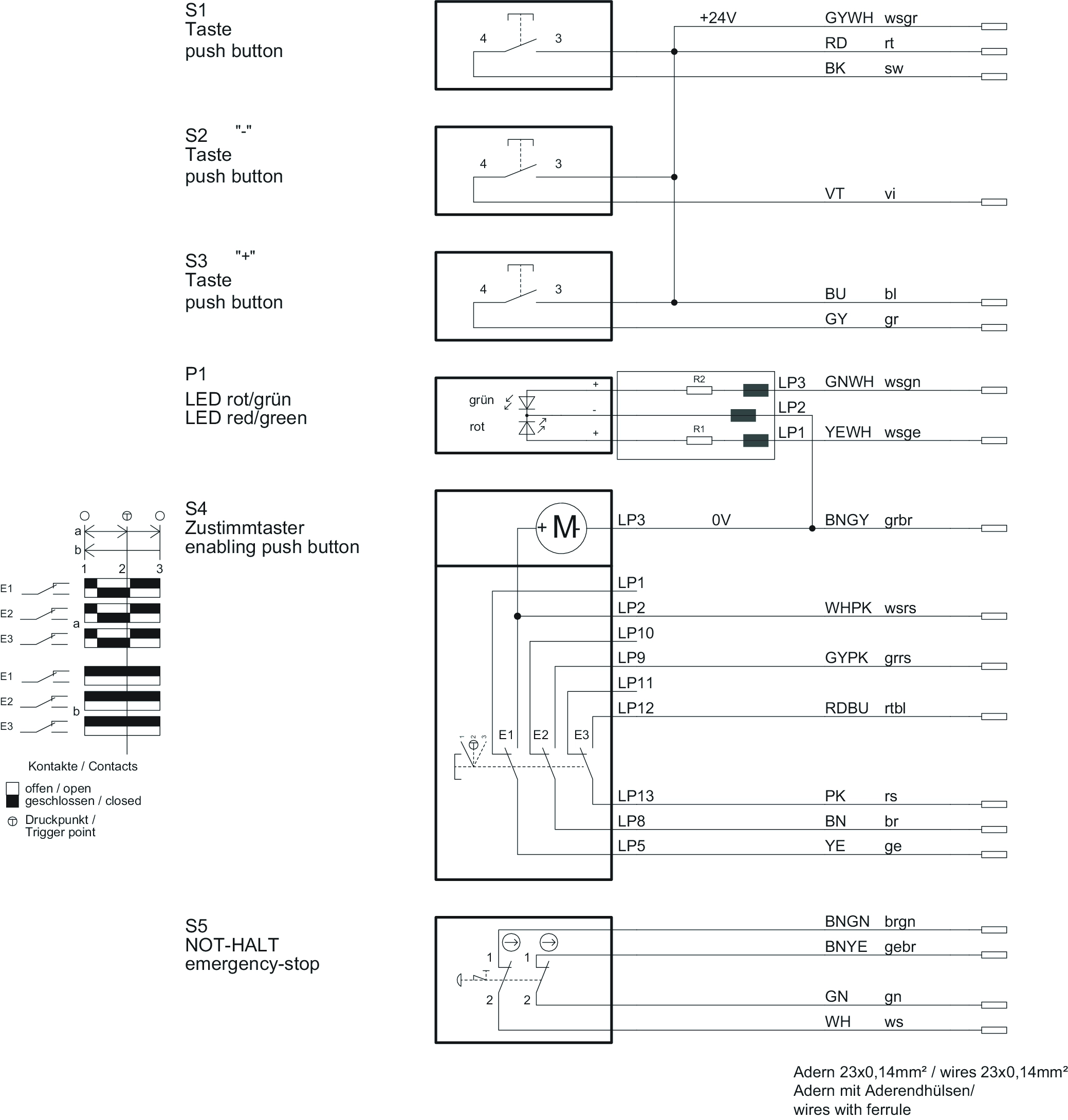

Wiring diagram
Wiring diagram
Function sequence
Function sequence

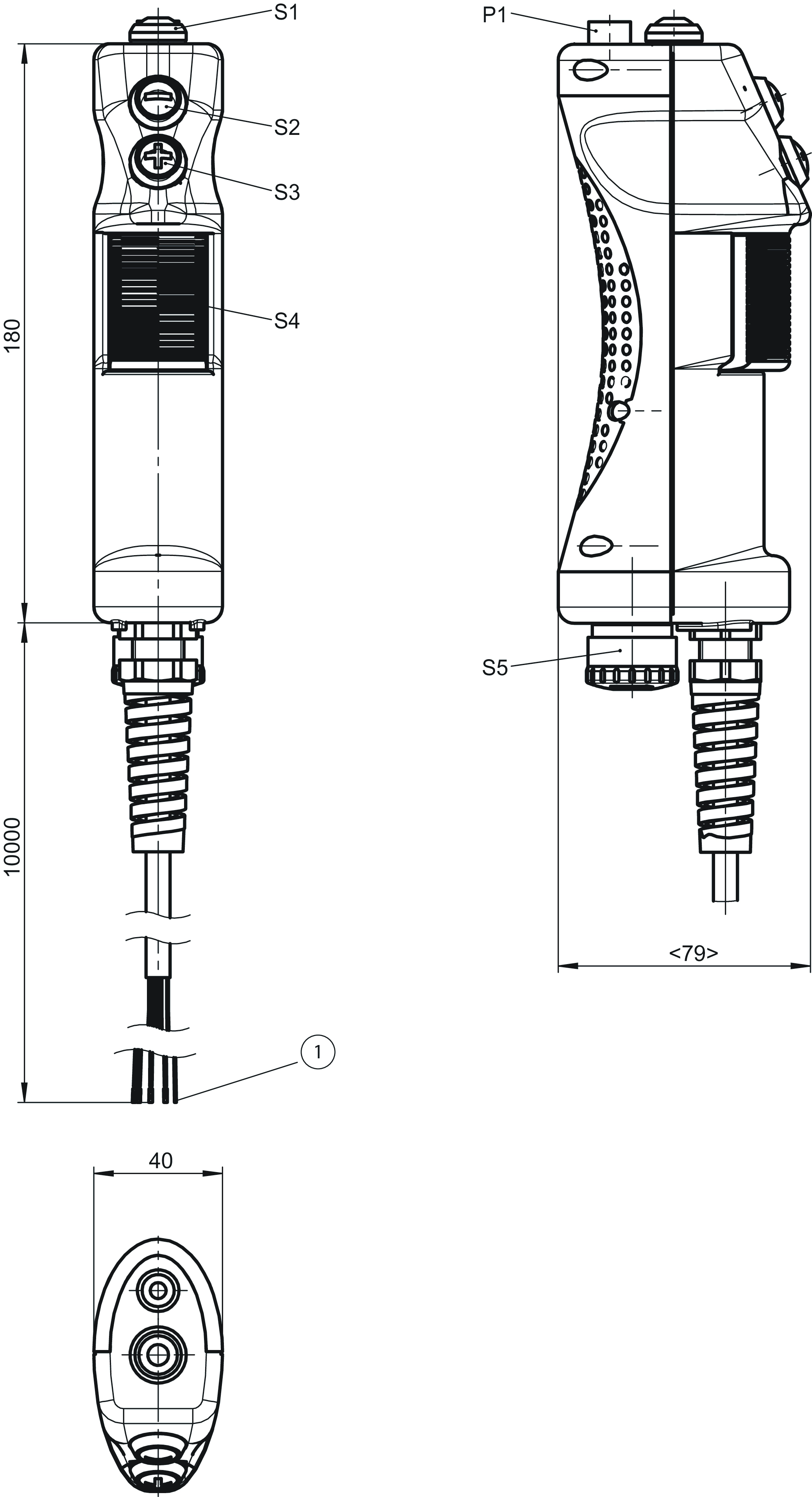

Dimensional drawings

Dimensional drawings
1Cable end sleeves

Connection examples

Connection examples

Connection examples

Connection examples

Connection examples

Connection examples

Teknik Veriler

Approvals

DGUV_ET 25046_ET 25047c_UL_us_E206093_4/1

Operating and display elements

ItemColorExtrasNote slide-in labelSwitching elementVersionSlide-in labelNumberDesignation1LED
Vibration motor1
blackPushbutton1
+ button1
Emergency stop device1
LED red/green1
- button1

Electrical connection values

Fuse max. 2 A gG
Connecting cable 23x0.14 mm² (screened)
rated conditional short-circuit current 100 A
Rated insulation voltage Ui 50 V
Rated impulse voltage Uimp 0.5 kV
Utilization category
DC-13 30 V 0.1 A (For enabling switch, caution: outputs must be protected with a free-wheeling diode in case of inductive loads)
DC-13 24V 0.01A (For additional indicators)
DC-13 24V 0.3A (For additional controls)
Switching characteristics 3-stage enabling switch
Degree of contamination (external, according to EN 60947-1) 3

Mechanical values and environment

Connection type flying lead
Number of changeover contacts 3 (Connection as per block diagram)
Storage temperature -25 ... 70 °C
Cable length
straight 10 m
Mechanical life 1 x 10⁶
Switching principle Snap-action contact element
Degree of protection IP54
Ambient temperature -5 ... 60 °C
Material PA, CR, TPE (Low PAH)

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Emergency stop0.1x10620 y
Enabling switch0.1x10620 y


Miscellaneous

in compliance with 60947-5-8

İndirme

Komple paket

Tüm önemli belgeleri tek bir tıklama ile indirin.

İçerik:

  • Kullanım talimatları ve kullanım talimatlarına veya kısa talimatlara yapılan tüm eklemeler
  • Kullanım talimatlarını tamamlayan tüm veri sayfaları
  • Uygunluk beyanı
Paketin tamamını indirin (ZIP, 1,7 MB)

Tek Belgeler

Diğer Belgeler

ePlan macros

Sipariş verileri

Sip. No. 117128
Makale adı ZSM2204-117128
Ağırlık 1,466kg
Gümrük sınıfı 85371098
ECLASS 11.0 27-37-12-38 Agreement switch
