CES-A-BDA-18-156935 (Sip. No. 156935)

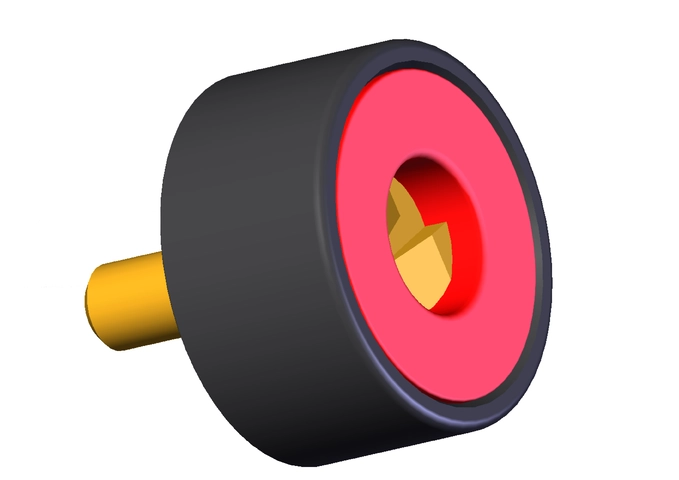

Actuator CES-A-BDA

  • For safety switch CES-C01
  • For CES-AZ safety systems in combination with the read heads CES-A- LNA and CES-A-LMN
  • Round design, ø 18 mm
  • For use in applications in very confined spaces
  • Mounting on metal or plastic is permissible
  • Flush installation is permissible only in plastic
CES-A-BDA-18-156935 (Sip. No. 156935)

Açıklama

Attention: The actuating range decreases in case of flush installation in metal.

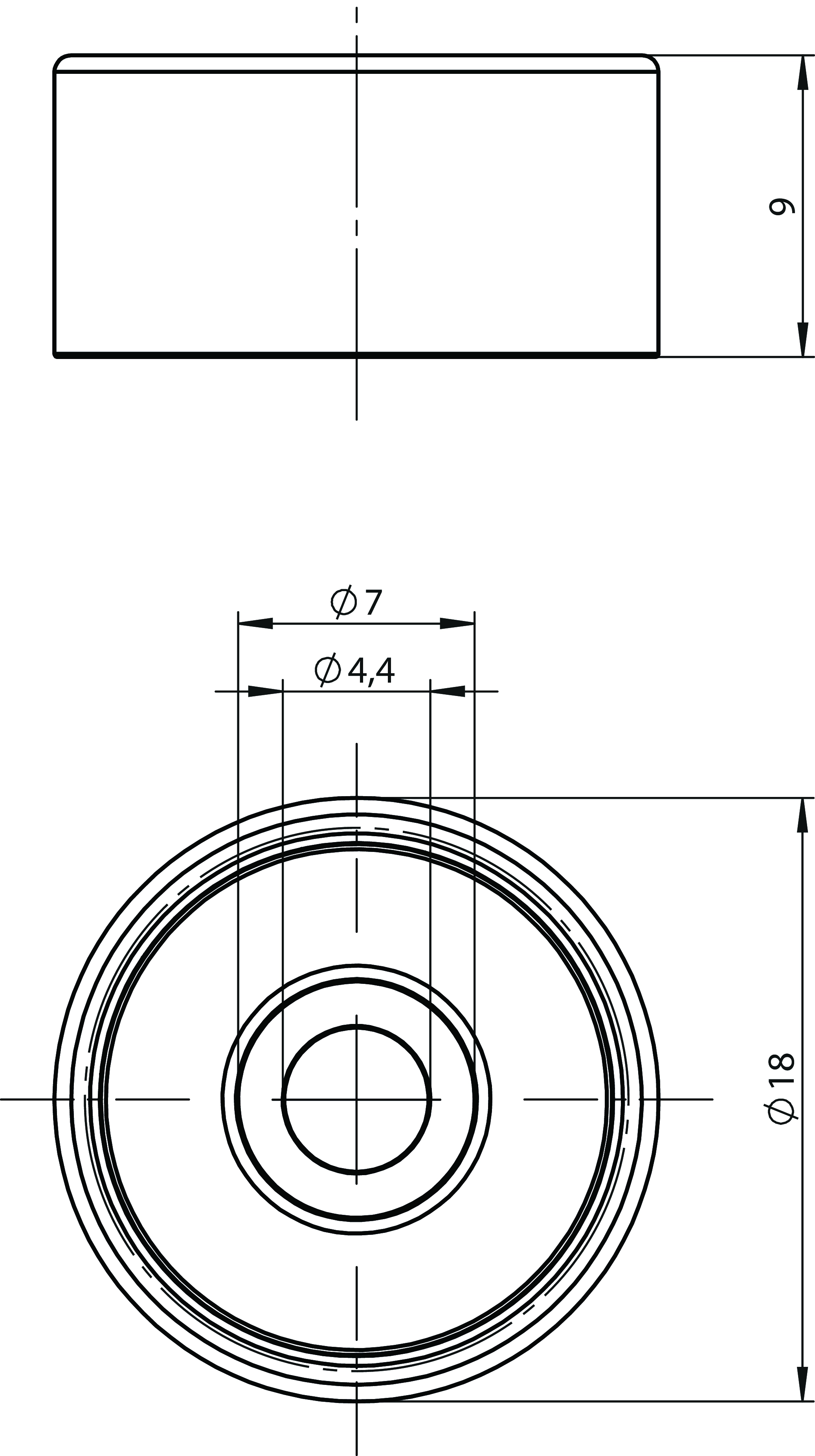

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Teknik Veriler

Approvals

c_UL_us_E155795_3/1

Workspace

Actuator distance s
Minimum distance for side approach direction min. 8 mm
Switch-on distance
with center offset m=0 19 mm (for surface mounting of the actuator)
Secured switch-off distance sar
with center offset m=0 45 mm (for surface mounting of the actuator on metal)
Secured switching distance sao
with center offset m=0 min. 10 mm (for surface mounting of the actuator on metal)
Switching hysteresis
with center offset m=0 1 ... 3 mm (for surface mounting of the actuator on metal)

Electrical connection values

Power supply Inductive via read head

Mechanical values and environment

Tightening torque
Fixing screws min. 2 Nm
Storage temperature -25 ... 70 °C
Degree of protection IP65/IP67
Ambient temperature -25 ... 70 °C
Material
Sleeve PBT-GF30
Active face PEEK 450

Components included in the set

Included accessories 1x safety screw M4x14

İndirme

Komple paket

Tüm önemli belgeleri tek bir tıklama ile indirin.

İçerik:

  • Kullanım talimatları ve kullanım talimatlarına veya kısa talimatlara yapılan tüm eklemeler
  • Kullanım talimatlarını tamamlayan tüm veri sayfaları
  • Uygunluk beyanı
Paketin tamamını indirin (ZIP, 0,4 MB)

Tek Belgeler

Diğer Belgeler

ePlan macros

Sipariş verileri

Sip. No. 156935
Makale adı CES-A-BDA-18-156935
Ağırlık 0,014kg
Gümrük sınıfı 85389099990
ECLASS 11.0 27-27-24-04 Actuator for safety-related proximity switch
