SN02R08-552-MC2029 (Sip. No. 091083)

Series SN... 8 mm, mechanical

  • Plunger spacing 8 mm
  • Upright housing, without flange
  • Degree of protection IP67 according to IEC 60529
SN02R08-552-MC2029 (Sip. No. 091083)

Açıklama

Switching elements

ES 552

Snap-action switching contact 1 changeover contact standard switching element

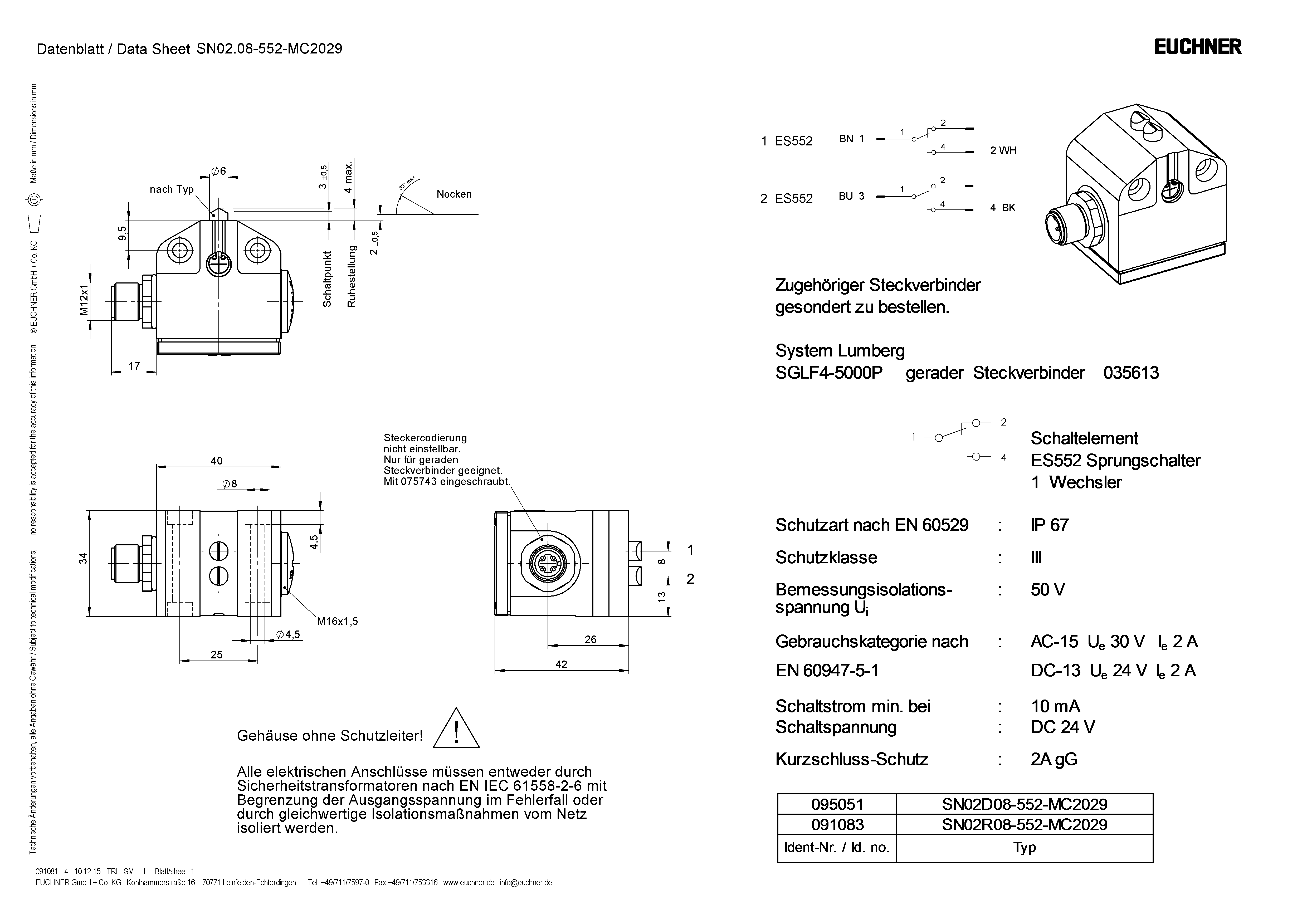

Dimension drawing
Dimension drawing
Wiring diagram ES 552
Wiring diagram ES 552

Dimensional drawings

Dimensional drawings
1Operating point
2Max. free position
3Dog
4Plug coding not adjustable. Only suitable for straight plug connectors. Screwed in with 075743.
5Housing without earth conductor! All the electrical connections must either be isolated from the mains supply by a safety transformer according to EN IEC 61558-2-6 with limited output voltage in the event of a fault, or by other equivalent insulation measures.
6Switching element: ES552 with snap-action contact element, 1 changeover contact

Connection examples

Connection examples

Teknik Veriler

Approvals

CCC2024010305643587_MultipleLimitSwitchc_UL_us_E155795_3/6

Electrical connection values

Fuse max. 2 A gG
Rated insulation voltage Ui 50 V
Rated impulse voltage Uimp 2.5 kV
Utilization category
AC-15 2 A 30 V
DC-13 2 A 24 V
Switching current
min. at DC 24V min. 10 mA

Mechanical values and environment

Anfahrgeschwindigkeit 0.01 ... 50 m/min
Connection type 1 x plug connector M12 (4-pin, not adjustable. Only for straight mating connector. Mounted on left.)
Number of switching elements 2
Number of changeover contacts 2
Design upright
Actuating element Roller plunger (Slide bearing)
Actuating force min. 15 N
Installation orientation any
Storage temperature -25 ... 80 °C
Mechanical life 10 x 10⁶ (Switching element)
Roller diameter 5 mm
Switching principle Snap-action switching contact
Operating point accuracy ± 0,05 (The reproducible operating point accuracy refers to the axial travel of the plunger after the switching element ES 552 has been run-in with approx. 2,000 operating cycles.)
Degree of protection IP67 (only screwed tight with the related mating connector.)
Plunger spacing 8 mm
Ambient temperature -5 ... 80 °C
Material
Contact Pure silver (Ag)
Housing Die-cast aluminum, anodized

Miscellaneous

C number
C2029
Additional information Housing without earth conductor! (All the electrical connections must either be isolated from the mains supply by a safety transformer according to EN IEC 61558-2-6 with limited output voltage in the event of a fault, or by other equivalent insulation measures.)

İndirme

Komple paket

Tüm önemli belgeleri tek bir tıklama ile indirin.

İçerik:

  • Kullanım talimatları ve kullanım talimatlarına veya kısa talimatlara yapılan tüm eklemeler
  • Kullanım talimatlarını tamamlayan tüm veri sayfaları
  • Uygunluk beyanı
Paketin tamamını indirin (ZIP, 2,1 MB)

Tek Belgeler

Diğer Belgeler

Sipariş verileri

Sip. No. 091083
Makale adı SN02R08-552-MC2029
Ağırlık 0,151kg
Gümrük sınıfı 85365019000
ECLASS 11.0 27-27-06-02 Multi-position switch
