SN02D08-558SVM5-MC2004 (Sip. No. 087517)

Series SN... 8 mm, mechanical

  • Plunger spacing 8 mm
  • Upright housing, without flange
  • Degree of protection IP67 according to IEC 60529
SN02D08-558SVM5-MC2004 (Sip. No. 087517)

Açıklama

Switching elements

ES 552

Snap-action switching contact 1 changeover contact standard switching element

ES 614

Snap-action switching contact 1 changeover contact suitable for switching low currents

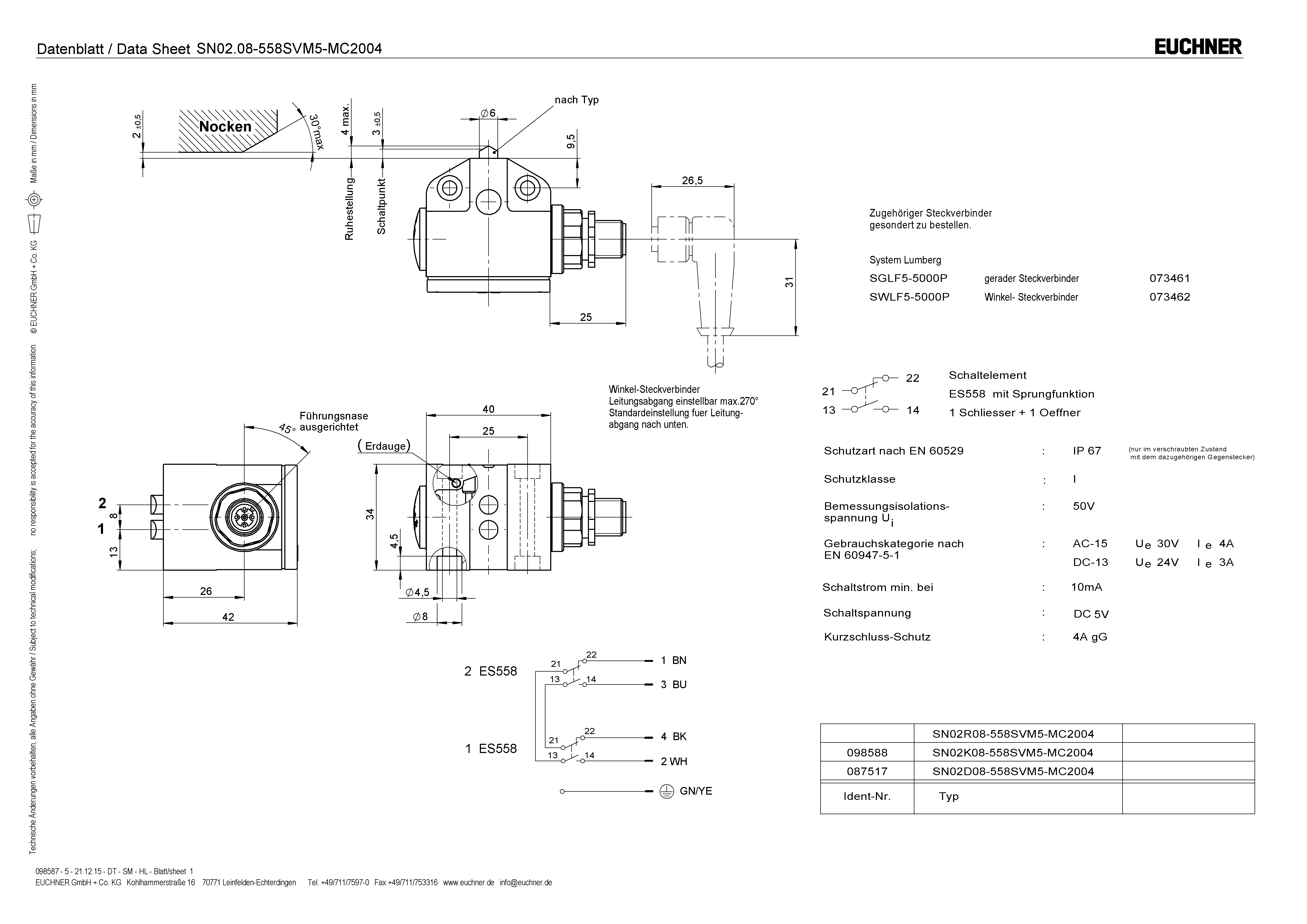

Dimension drawing
Dimension drawing
Wiring diagram ES 552
Wiring diagram ES 552
Wiring diagram ES 614
Wiring diagram ES 614

Dimensional drawings

Dimensional drawings
1Operating point
2Max. free position
3Dog
4Guide lug aligned
5(Ground connection)
6Right-angle plug connector: cable outlet adjustable max. 270°; default setting for cable outlet downward.
7Switching element: ES558 with snap-action function, 1 NO contact + 1 NC contact

Connection examples

Connection examples

Connection examples

Connection examples

Teknik Veriler

Approvals

CCC2024010305643587_MultipleLimitSwitchc_UL_us_E155795_3/6

Electrical connection values

Fuse max. 4 A gG
Rated insulation voltage Ui 50 V
Rated impulse voltage Uimp 1.5 kV
Utilization category
DC-13 3 A 24 V
AC-15 4 A 30 V
Switching current
min. at DC 5V 10 mA

Mechanical values and environment

Anfahrgeschwindigkeit 0.01 ... 20 m/min
Connection type 1 x plug connector M12 (5-pin, angle plug connector: cable outlet adjustable, max. 270°. Default setting for cable outlet to the rear.)
Number NC contacts 2
Number of switching elements 2
Number of NO contacts 2
Design upright
Actuating element Chisel plunger
Actuating force 15 ... 20 N
Installation orientation any
Storage temperature -25 ... 80 °C
Mechanical life 10 x 10⁶
Switching principle Snap-action switching contact
Operating point 2.5 ... 3 ... 3.5
Operating point accuracy ± 0,02 (The reproducible operating point accuracy refers to the axial travel of the plunger after the switching element has been run-in with approx. 2000 operating cycles.)
Degree of protection IP67 (only screwed tight with the related mating connector.)
Plunger spacing 8 mm
Ambient temperature -5 ... 80 °C
Material
Contact Pure silver (Ag)
Housing Anodized die-cast alloy

Miscellaneous

C number
C2004

İndirme

Komple paket

Tüm önemli belgeleri tek bir tıklama ile indirin.

İçerik:

  • Kullanım talimatları ve kullanım talimatlarına veya kısa talimatlara yapılan tüm eklemeler
  • Kullanım talimatlarını tamamlayan tüm veri sayfaları
  • Uygunluk beyanı
Paketin tamamını indirin (ZIP, 2,0 MB)

Tek Belgeler

Diğer Belgeler

Sipariş verileri

Sip. No. 087517
Makale adı SN02D08-558SVM5-MC2004
Ağırlık 0,196kg
Gümrük sınıfı 85365019000
ECLASS 11.0 27-27-06-02 Multi-position switch
