MSM-1-P-CS-B0P0D1-I3-167632 (Rend. sz. 167632)

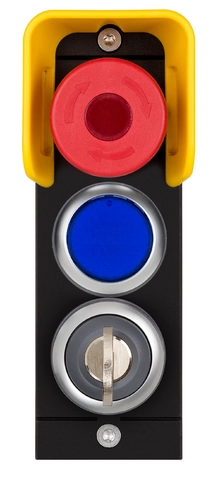

Submodule MSM-1-P... (emergency stop, pushbutton, key-operated rotary switch)

  • Function expansion for modules MGB2 and MCM
  • Connection type: P
  • 1 illuminated emergency stop according to ISO 13850
  • 1 illuminated blue pushbutton
  • 1 key-operated rotary switch SSG10, 1 x 40°, form V, spring return
MSM-1-P-CS-B0P0D1-I3-167632 (Rend. sz. 167632)

Ismertetés

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing
Wiring diagram for connection to MGB2 Classic
Wiring diagram for connection to MGB2 Classic
MGB2 Modular: at a glance
MGB2 Classic
Multifunctional door locking systems

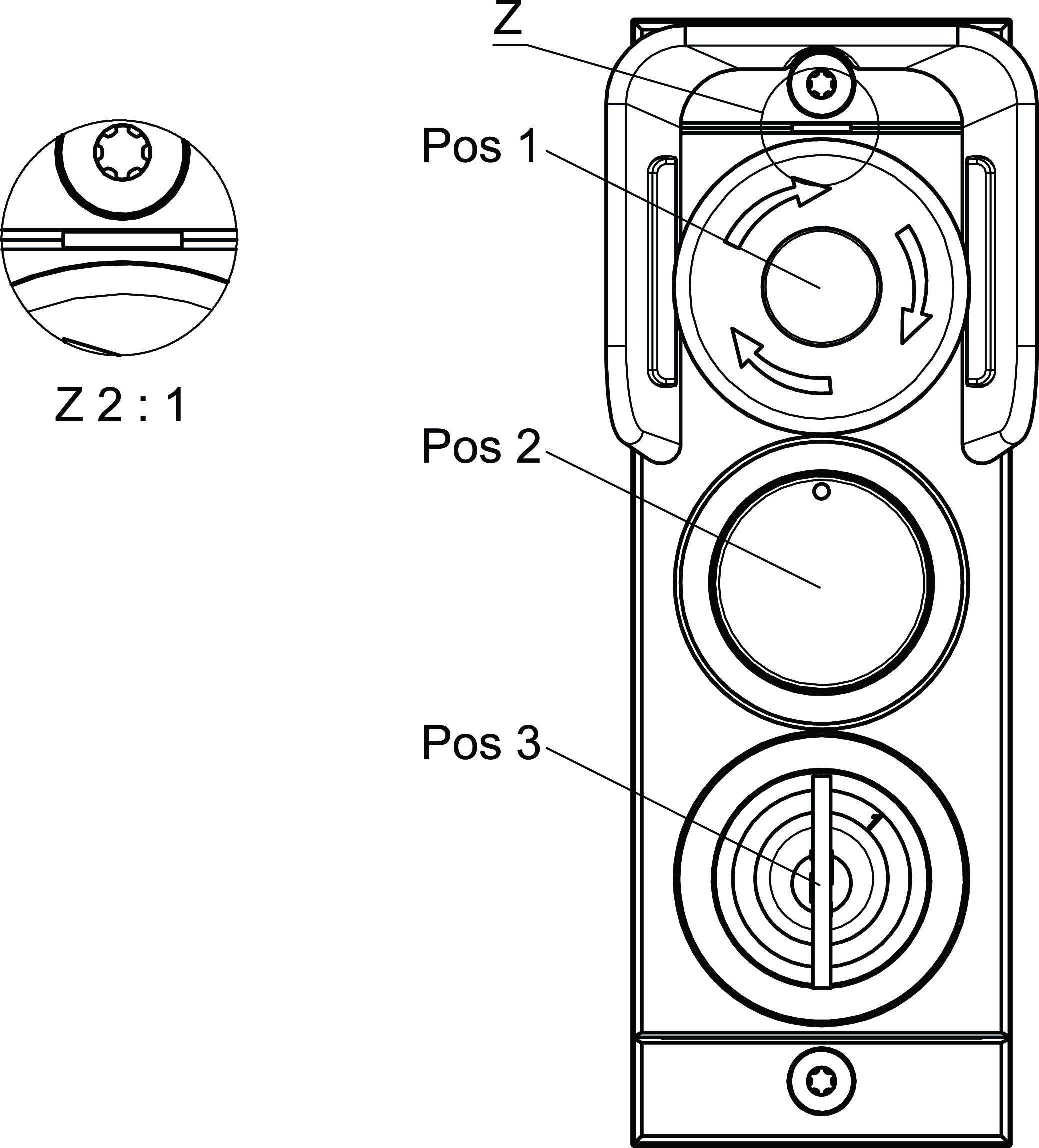

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings
Pos 1Emergency stop according to ISO 13850, illuminated
Pos 2illuminated pushbutton, blue
Pos 3Key-operated rotary switch SSG 10, 1 x 40°, form V, spring return
Zmarks orientation of item 1

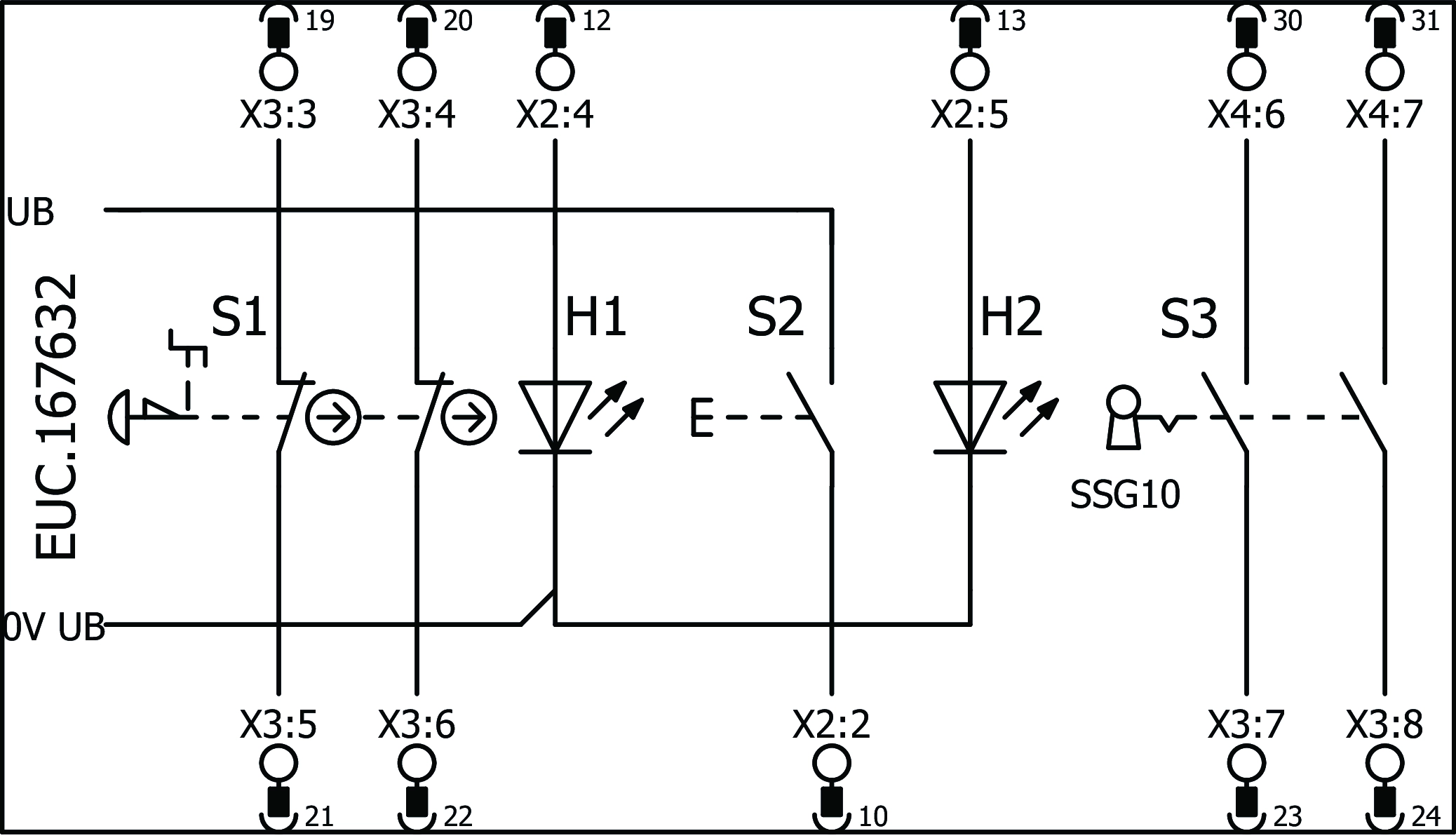

Connection examples

Connection examples

Műszaki adatok

Operating and display elements

ItemColorExtrasNote slide-in labelVersionSlide-in labelSwitching elementNumberDesignation1LED
1Illuminated emergency stop2 PD
2blueIlluminated pushbutton1NO
3SSG 10Key-operated rotary switch (test pulse monitored)2NO

Electrical connection values

Current consumption max. 26 mA
Controls and indicators
Breaking capacity max. 0.25 W
Switching voltage 24 V
Switching current 5 ... 10 mA
LED power supply 24 V DC
Illuminated emergency stop
Breaking capacity max. 0.25 W
Switching voltage 5 ... 24 V
Switching current 1 ... 100 mA
LED power supply 24 V DC

Mechanical values and environment

Installation orientation any
Storage temperature -25 ... 70 °C
Response time See operating instructions for bus module MBM-... or interlocking/locking module MGB2-I.-BR-... / MGB2-L.-BR-...
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (IP20) (in the installed state)
Ambient temperature
at UB = 24 V DC -25 ... 55 °C
Material Fiber glass reinforced plastic, die-cast zinc, nickel plated

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Emergency stop0.13x10620 y
Safe key-operated rotary switch0.06x10620 y


Miscellaneous

Submodulbreite 1
Software ID (SW ID) 9000038

Letöltések

Teljes csomag

Minden fontos dokumentum letöltése egyetlen kattintással.

Tartalom:

  • A használati utasítás és a használati utasítás vagy a rövid utasítás kiegészítései
  • A használati utasítást kiegészítő adatlapok
  • A megfelelőségi nyilatkozat
Teljes csomag letöltése (ZIP, 0,6 MB)

Egyedi dokumentumok

Egyéb dokumentumok

ePlan macros

Rendelési adatok

Rend. sz. 167632
Cikk neve MSM-1-P-CS-B0P0D1-I3-167632
Súly 0,23kg
Vámtarifaszám 85371098
ECLASS 27-24-26-05 Field bus, decentralized peripheral - function-/technology module
