ES-XN4E-BL412MFRH (Rend. sz. 105015)

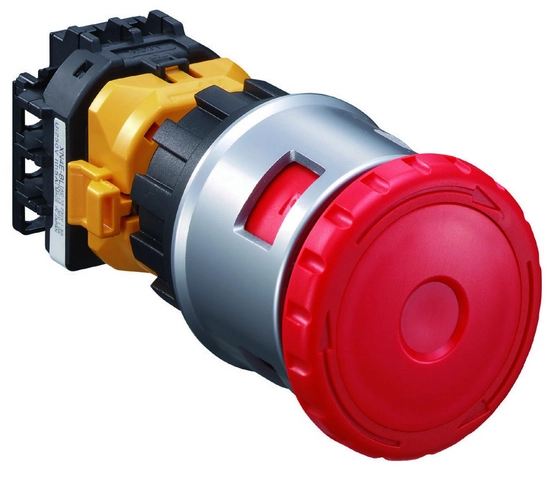

ES-XN EMERGENCY STOP Flush-Mounted Unit, 30 mm

  • Red control knob, 44 mm diameter
  • Reset by turning
  • Contact block monitoring
  • Screw terminal
  • Can be locked using padlock
ES-XN4E-BL412MFRH (Rend. sz. 105015)

Ismertetés

Contact block monitoring

If the switching elements become dislodged, an EMERGENCY STOP command is automatically activated.

Hold and Reset Function

The emergency stop devices engage when actuated; to perform the manual release, turn them.

Switching element

2 positively driven contacts two NO contacts

Wiring diagram
Wiring diagram
Dimension drawing
Dimension drawing

Functional drawings

Functional drawings

Dimensional drawings

Dimensional drawings
1Control panel thickness
2Opening for padlock
3Seal
4Screw ring
5Panel cut-out

Műszaki adatok

Approvals

TÜV Süd München_ES-XW XA XN_B 040393 0043 Rev. 01UL_us_E326576c_UL_us_E93776_16

Electrical connection values

Rated insulation voltage Ui 250 V
Utilization category
DC-13 Normally closed contact 1 A 30 V
DC-14 Normally open contact 0.3 A 250 V
AC-15 Normally closed contact 1.5 A 250 V
Switching current
min. at 24 V 10 mA
thermal rated current Ith 1 A

Mechanical values and environment

Connection type Screw terminal
Number of NO contacts 1
Number of positively driven contacts 2
Storage temperature -25 ... 70 °C
Mechanical life 0.25 x 10⁶
Mounting cut-out D30 (EN IEC 60947-5-1)
Degree of protection IP20
Ambient temperature -25 ... 60 °C
Material
Pushbutton Reinforced thermoplastic
Contact Silver alloy, gold flashed
Housing Polycarbonate

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Emergency stop0.1x10620 y


Miscellaneous

Color
Actuating button red
Bottom part yellow
Additional feature
Button head Ø 44 mm
Can be locked using padlock
Reset by turning
Contact block monitoring

Letöltések

Teljes csomag

Minden fontos dokumentum letöltése egyetlen kattintással.

Tartalom:

  • A használati utasítás és a használati utasítás vagy a rövid utasítás kiegészítései
  • A használati utasítást kiegészítő adatlapok
  • A megfelelőségi nyilatkozat
Teljes csomag letöltése (ZIP, 3,8 MB)

Egyedi dokumentumok

Egyéb dokumentumok

Rendelési adatok

Rend. sz. 105015
Cikk neve ES-XN4E-BL412MFRH
Súly 0,064kg
Vámtarifaszám 85365019000
ECLASS 11.0 27-37-12-44 EMERGENCY-STOP pushbutton, complete device
