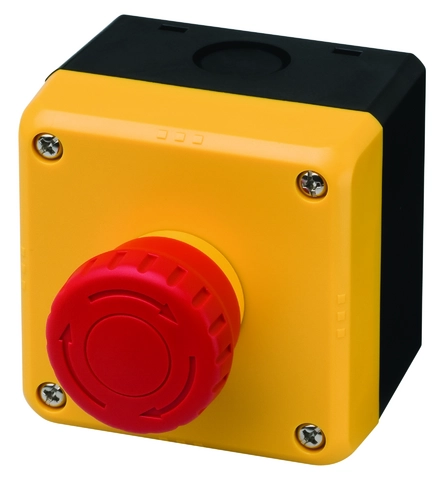

ES-FB1W-XW1E-LV412Q4MFR-YO (Rend. sz. 105018)

ES-FB..-XW EMERGENCY STOP Device with Housing

  • Red control knob, 40 mm diameter
  • Reset by pulling or turning
  • Contact block monitoring
  • Screw terminal
  • illuminated
ES-FB1W-XW1E-LV412Q4MFR-YO (Rend. sz. 105018)

Ismertetés

Hold and Reset Function

The emergency stop devices engage when actuated by pressing; they are unlocked by turning or pulling.

Contact block monitoring

If the switching elements become dislodged, an EMERGENCY STOP command is automatically activated.

Switching element

2 positively driven contacts two NO contacts

Wiring diagram
Wiring diagram
Dimension drawing
Dimension drawing
Wiring diagram LED
Wiring diagram LED

Functional drawings

Functional drawings

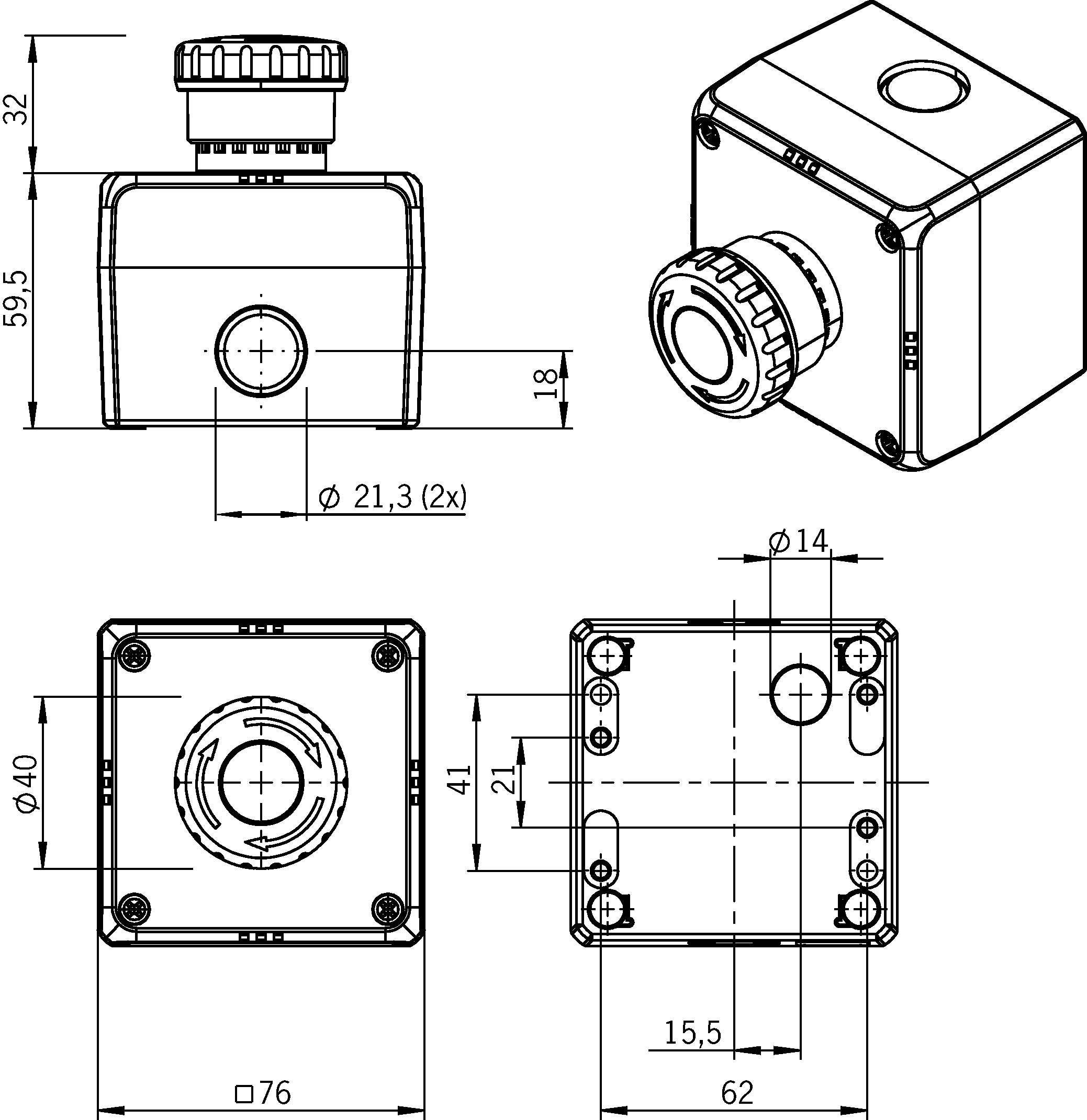

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Műszaki adatok

Approvals

c_UL_us_E93776_7

Electrical connection values

Rated insulation voltage Ui 250 V
Operating voltage
AC/DC -10% ... 24 ... +10% V
Operating current 15 mA
Utilization category
DC-14 Normally open contact 0.3 A 250 V
AC-15 Normally closed contact 1.5 A 250 V
DC-13 Normally closed contact 1 A 30 V
Switching current
min. at 24 V 10 mA
thermal rated current Ith 1 A

Mechanical values and environment

Connection type Screw terminal
Number of NO contacts 1
Number of positively driven contacts 2
Storage temperature -25 ... 70 °C
Mechanical life 0.25 x 10⁶
Degree of protection IP65
Ambient temperature -25 ... 55 °C
Material
Contact Silver alloy, gold flashed
Pushbutton Reinforced thermoplastic
Housing Polycarbonate

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Emergency stop0.1x10620 y


Miscellaneous

Lighting Yes
Color
Bottom part yellow
Actuating button red transparent
Additional feature
Contact block monitoring
Button head Ø 40 mm
Reset by pulling or turning
Device with housing

Letöltések

Teljes csomag

Minden fontos dokumentum letöltése egyetlen kattintással.

Tartalom:

  • A használati utasítás és a használati utasítás vagy a rövid utasítás kiegészítései
  • A használati utasítást kiegészítő adatlapok
  • A megfelelőségi nyilatkozat
Teljes csomag letöltése (ZIP, 4,1 MB)

Egyedi dokumentumok

Egyéb dokumentumok

Rendelési adatok

Rend. sz. 105018
Cikk neve ES-FB1W-XW1E-LV412Q4MFR-YO
Súly 0,256kg
Vámtarifaszám 85365019000
ECLASS 11.0 27-37-12-44 EMERGENCY-STOP pushbutton, complete device
