CES-A-SBA-G03/V3-099334 (Rend. sz. 099334)

CES-A-SGA Actuator, 3 actuators per package

  • three actuators with the same coding
  • Cube-shaped design 42 x 25 mm
  • 2 M4x14 safety screws (per actuator) included in the package
CES-A-SBA-G03/V3-099334 (Rend. sz. 099334)

Ismertetés

Actuators with the same coding

The actuators of a packaging unit must be assigned to the safety switch by a teach-in operation so that they are detected by the system. This unambiguous assignment ensures a particularly high level of protection against tampering. The system thus possesses a high coding level.

The coding is identical for all the actuators in a packaging unit. Actuators from different packaging units are coded differently. Only one actuator from a packaging unit has to be taught-in. All other actuators from the same package can be used without an additional teach-in operation.

The switch detects only taught-in actuators. When an actuator from a new packaging unit is taught-in, the code for actuators from the previous packaging unit is disabled.

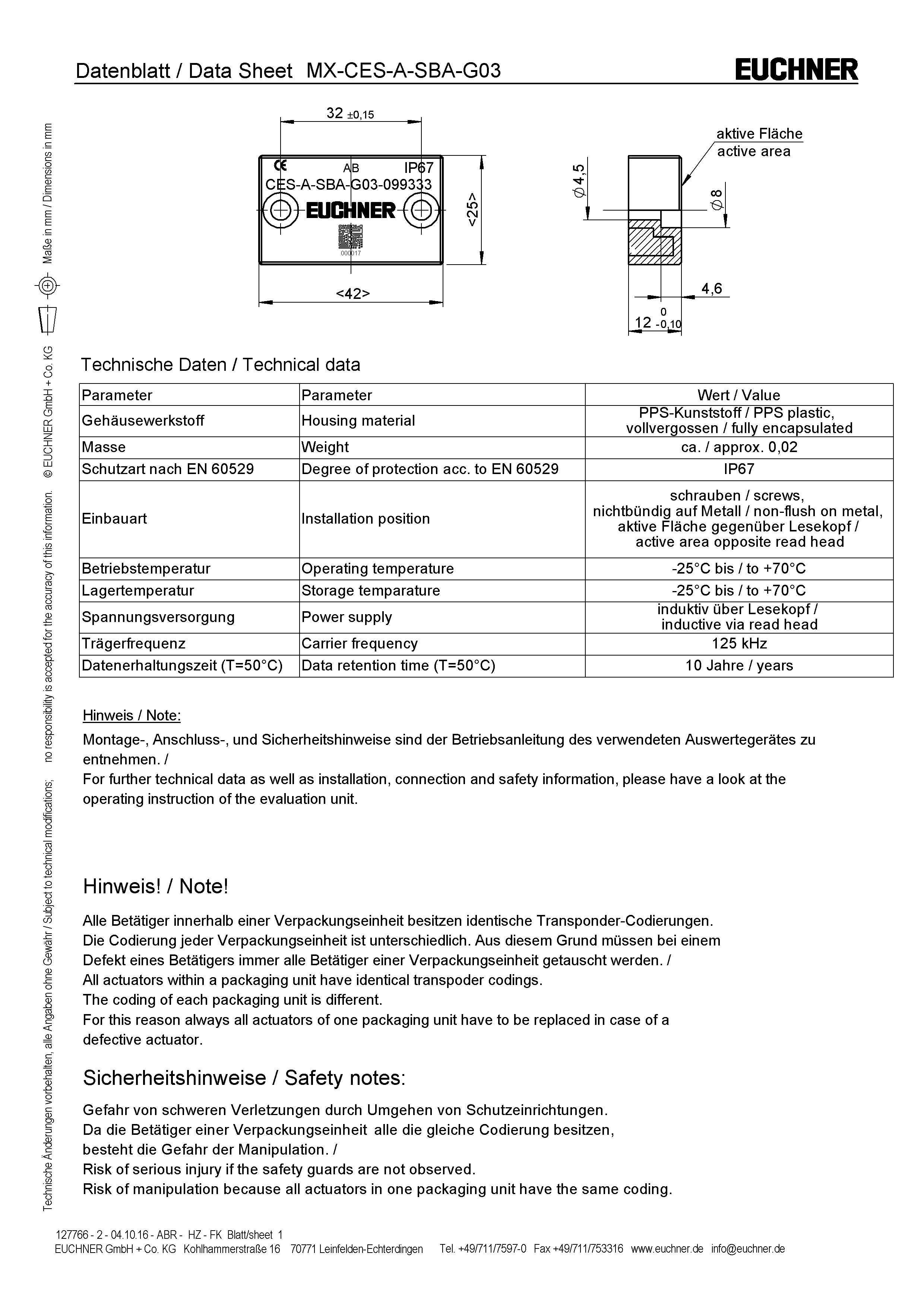

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings
1Active face

Műszaki adatok

Electrical connection values

Data retention time
T=50°C 10 y
Power supply Inductive via read head

Mechanical values and environment

Dimensions 42 x 12
Tightening torque
Fixing screws max. 1 Nm
Installation orientation active face opposite read head
Switching frequency max. 125 Hz
Storage temperature -25 ... +70 °C
Mounting type not flush with metal
Degree of protection IP67
Ambient temperature -25 ... +70 °C
Material Fully Encapsulated PPS Plastic

Components included in the set

Included accessories 2 M4x14-A2-50 security screws

Letöltések

Teljes csomag

Minden fontos dokumentum letöltése egyetlen kattintással.

Tartalom:

  • A használati utasítás és a használati utasítás vagy a rövid utasítás kiegészítései
  • A használati utasítást kiegészítő adatlapok
  • A megfelelőségi nyilatkozat
Teljes csomag letöltése (ZIP, 0,2 MB)

Egyedi dokumentumok

Egyéb dokumentumok

Rendelési adatok

Rend. sz. 099334
Cikk neve CES-A-SBA-G03/V3-099334
Súly 0,06kg
Vámtarifaszám 85389099990
ECLASS 11.0 27-27-24-04 Actuator for safety-related proximity switch
