CES-A-BLN-U2-103450 (Order no. 103450)
Choose content

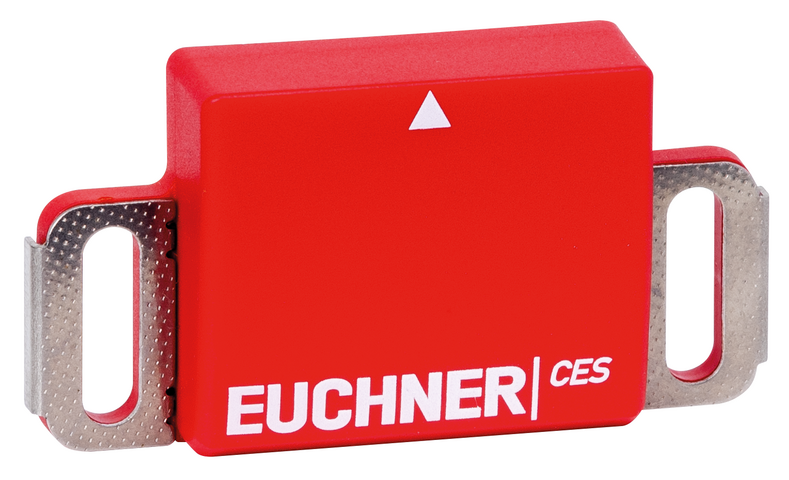

Actuator CES-A-BLN-U...
- Cube-shaped design 55 x 30 mm
- Use independent of position of door hinge
- Reinforcement plates
- Two safety screws M4x14 included
Description

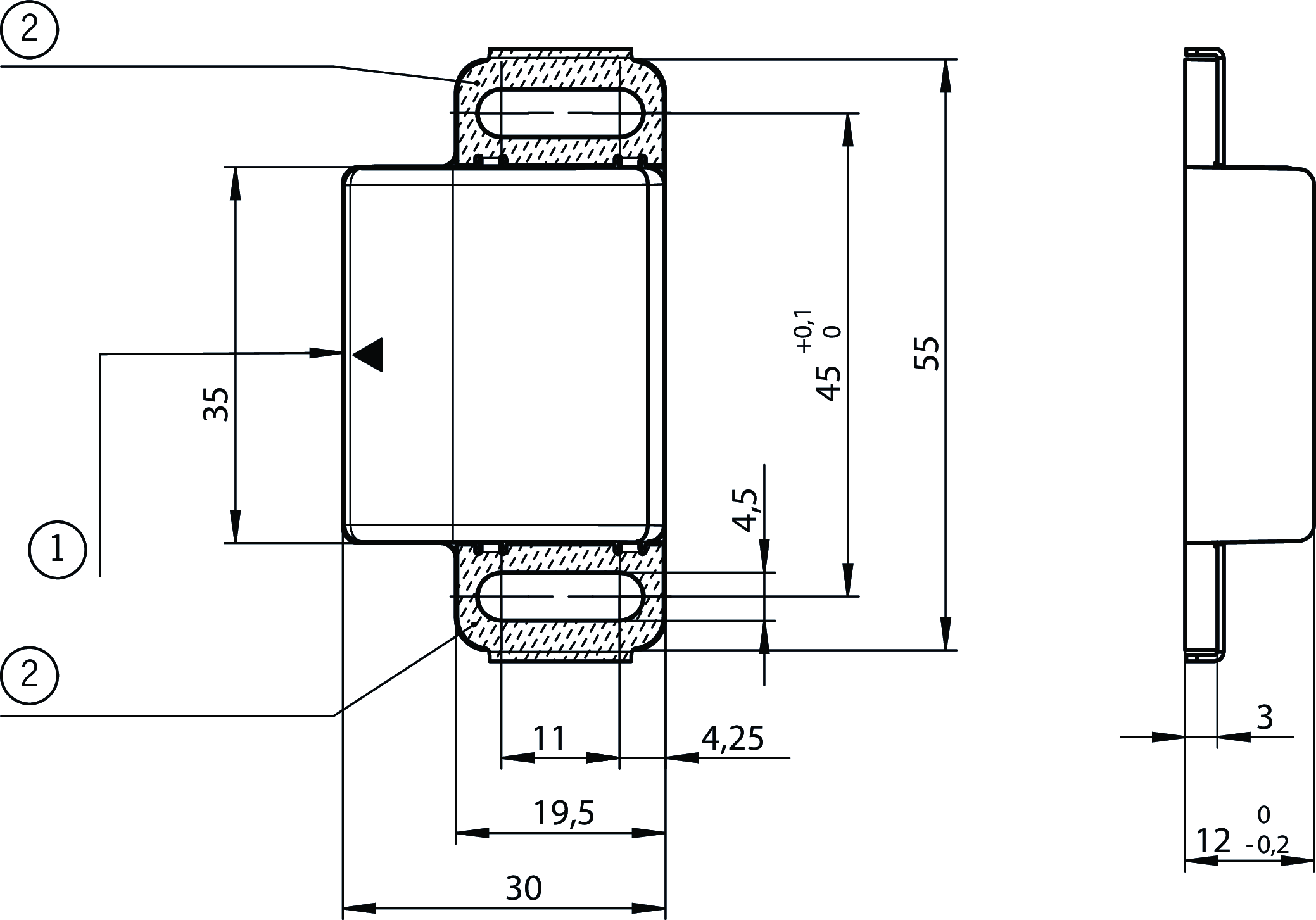

Dimensional drawings
| 1 | Active face |
| 2 | Reinforcement plate |
Technical data
Approvals
Electrical connection values
| Power supply | Inductive via read head |
Mechanical values and environment
| Tightening torque | |
| Fixing screws | max. 1 Nm |
| Storage temperature | -40 ... 70 °C |
| Degree of protection | IP67/IP69K |
| Ambient temperature | -40 ... 70 °C |
| Material | |
| Housing | Plastic (PBT) |
Accessories
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Download Complete Package (ZIP, 2,6 MB)
Single Documents
Declarations of conformity
EU-Konformitätserklärung
Doc. no.
Version
Language
Size
EU-Konformitätserklärung
Doc. no.
EDC2109923
Version
18
Language
Size
2,8 MB
UKCA-Konformitätserklärung
Doc. no.
Version
Language
Size
UKCA-Konformitätserklärung
Doc. no.
EDC20001470
Version
02
Language
Size
0,2 MB
Other Documents
Approvals and certificates
WEEE
Doc. no.
Version
Language
Size
WEEE
Doc. no.
ECO20001806
Version
01
Language
Size
0,1 MB
c UL us
Doc. no.
Version
Language
Size
c UL us
Doc. no.
Version
Language
Size
0,2 MB
Sales documents
CAD/eCAD
Ordering data
| Ordernumber | 103450 |
| Item designation | CES-A-BLN-U2-103450 |
| Gross weight | 0,024kg |
| Customs tariff number | 85389099990 |
| ECLASS 11.0 | 27-27-24-04 Actuator for safety-related proximity switch |
