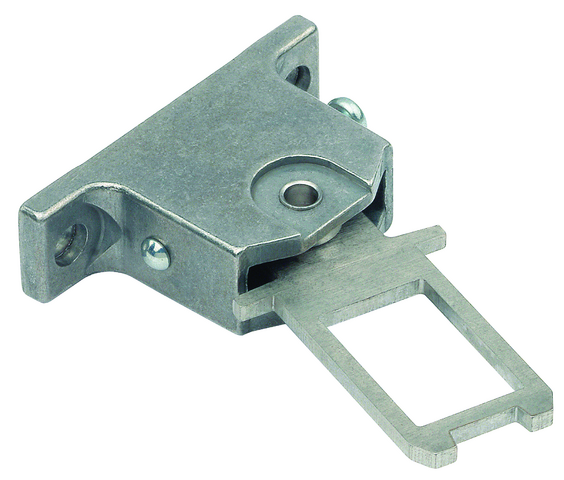

RADIUSBETAETIGER-S-LR-LN (Order no. 096844)

Hinged actuator S, left/right, for safety switch SGA/SGP/STA/STP/STM for insertion funnel

  • Actuator made of stainless steel
  • Two stainless-steel safety screws per actuator
  • For doors hinged on the right and left
RADIUSBETAETIGER-S-LR-LN (Order no. 096844)

Description

Notice

S-...-SN actuators must not be used in conjunction with insertion funnels. S-...-LN actuators must be used for insertion funnels.

Hinged actuators

For door radii smaller than 300 mm, a hinged actuator should be used. The spring-loaded movement of the actuator prevents damage caused by the actuator jamming in the actuating head. The actuator must be selected for left/right or up/down operation depending on the movement of the guard.

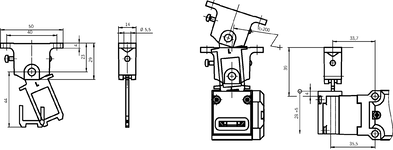

Dimension drawing

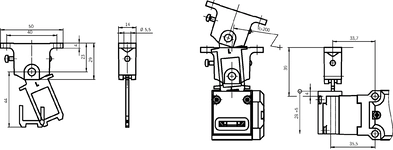

Dimension drawing

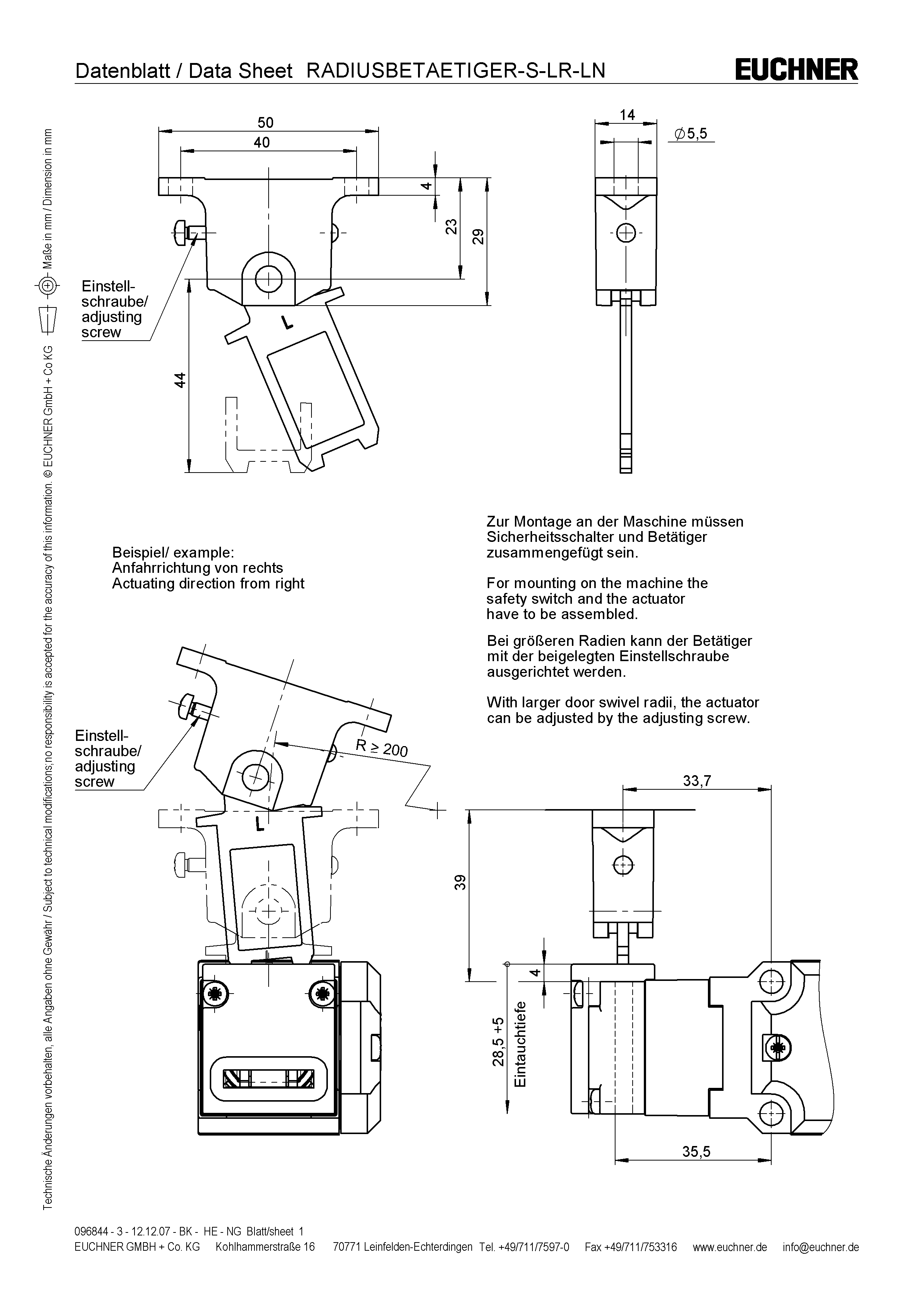

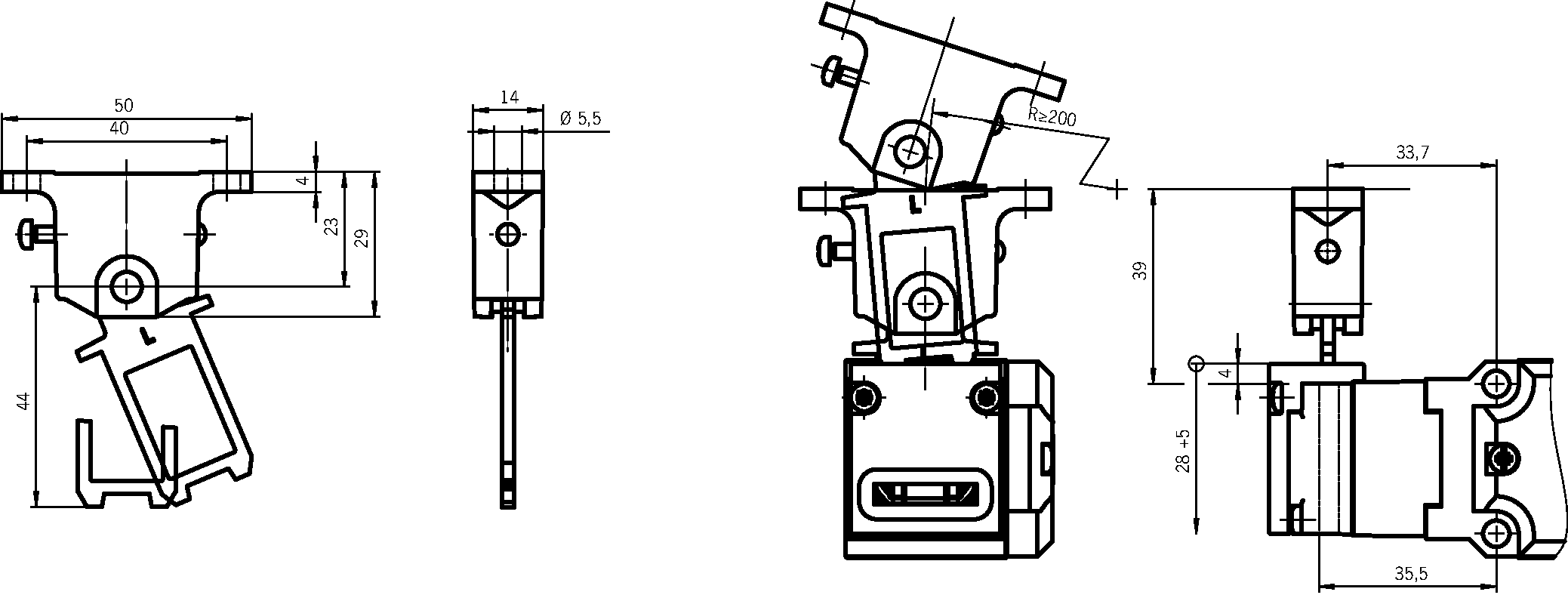

Dimensional drawings

Dimensional drawings

Technical data

Approvals

DGUV_SGA_ET 22058_ET 22059

Mechanical values and environment

Storage temperature -25 ... 70 °C
Overtravel max. 5 mm
Door radius min. 200 mm
Material
Actuator Stainless steel
Screw Stainless steel

Miscellaneous

Usability of insertion funnel Yes

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,2 MB)

Single Documents

Other Documents

ePlan macros

Ordering data

Ordernumber 096844
Item designation RADIUSBETAETIGER-S-LR-LN
Gross weight 0,042kg
Customs tariff number 85389099990
ECLASS 11.0 27-27-26-06 Actuator for safety-related position switch
